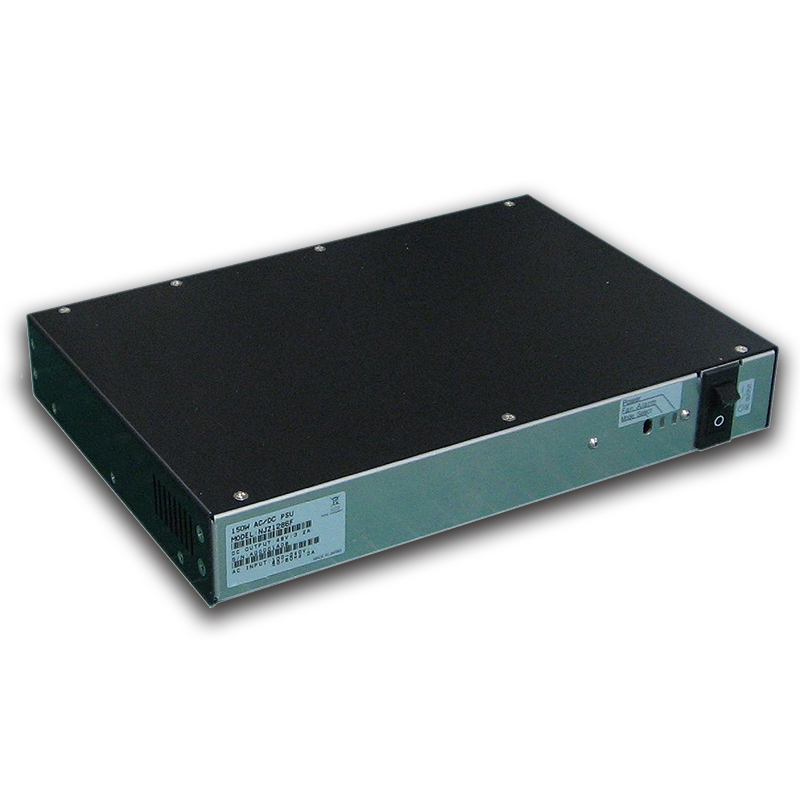

NJZ1286 Series 150W Indoor AC/DC Power Supply Unit (N-type)
An indoor, 1U rackmount 150 W AC/DC power supply unit that feeds +48 VDC to a BUC over coaxial cable.
The NJZ1286 is an indoor power supply unit that converts 100-240 VAC input into a stable +48 VDC output at up to 150 W, delivered to a compatible BUC over coaxial cable rather than a dedicated power connector. Housed in a compact 1U rackmount enclosure with an LED status indicator, it is available with N-type (50Ω) or F-type (75Ω) coaxial connectors and supports applications such as the NJT5118, NJT5218, NJT5762, NJT5763, NJT5764, and NJT8318 series. It weighs about 1.6 kg and is RoHS compliant. This entry covers the N-type connector variant (NJZ1286N).
| Parameter | Specification |
|---|---|
| Input AC Power Interface | IEC320-C14 Inlet |
| Output DC Power Interface | Coax. Connector, N-type Female (50 Ω) / Coax. Connector, F-type Female (75 Ω) |
| Input AC Power Voltage Range | Specified Value: 100 to 240 VAC; Maximum Rated Value: 90 to 264 VAC |
| Input AC Power Frequency | 50 / 60 Hz |
| Input AC Power Consumption | 200 VA |
| Output DC Power Voltage | +48 V ± 10% |
| Output DC Power Capacity | 150 W max. |
| Supported IF Frequency Range | 950 to 1,700 Hz |
| Operating Temperature Range | 0 to +50 ℃ |
| Weight | 1.6 kg |
| Dimensions | (L) 290 x (W) 200 x (H) 44 mm (w/o Interfaces & Screws) |
