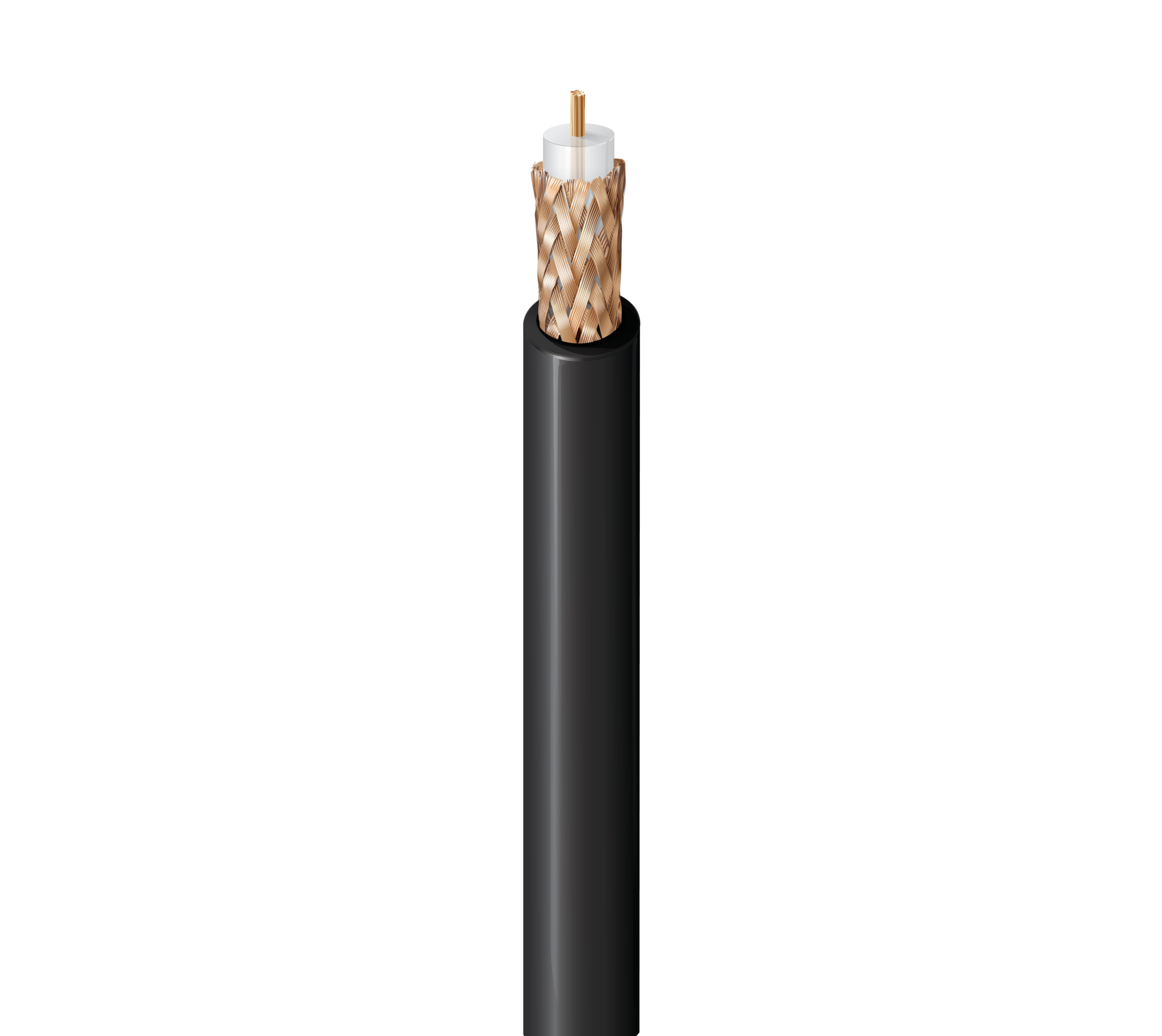

Belden 8237 — RG-8 50 Ohm Coaxial Cable
- Part No. 8237: Belden 50-ohm RG-8 RF coaxial cable
- Impedance: 50 ohms nominal
- Conductor: 13 AWG (7×21) Bare Copper
- Shield: 95% BC Braid Shield
- Jacket: PVC — CMH (Hazardous)
- Applications: VSAT ground station antenna feedlines, Long outdoor antenna runs
Belden 8237 is a 50-ohm RG-8 coaxial cable built for wireless transmission. With a 95% BC Braid Shield outer conductor and PVC jacket (PVC — general indoor and protected installations), it delivers consistent impedance and controlled attenuation across a wide frequency range. NEC rated CMH (Hazardous).
Construction
| Parameter | Detail |
|---|---|
| Part Number | 8237 |
| Impedance | 50 ohms |
| Type | RG-8 |
| Conductor | 13 AWG (7×21) Bare Copper |
| Shield | 95% BC Braid Shield |
| Jacket | Jacket |
| NEC Rating | CMH (Hazardous) |
Applications
- VSAT ground station antenna feedlines
- Long outdoor antenna runs
- Cellular base station main feeder cables
- High-power broadcast transmitter outputs
- Low-loss replacement for standard RG-8
Available in custom cut lengths. Contact Bravo Satcom at sales@bravosatcom.com or +971 55 541 5892 for pricing.
