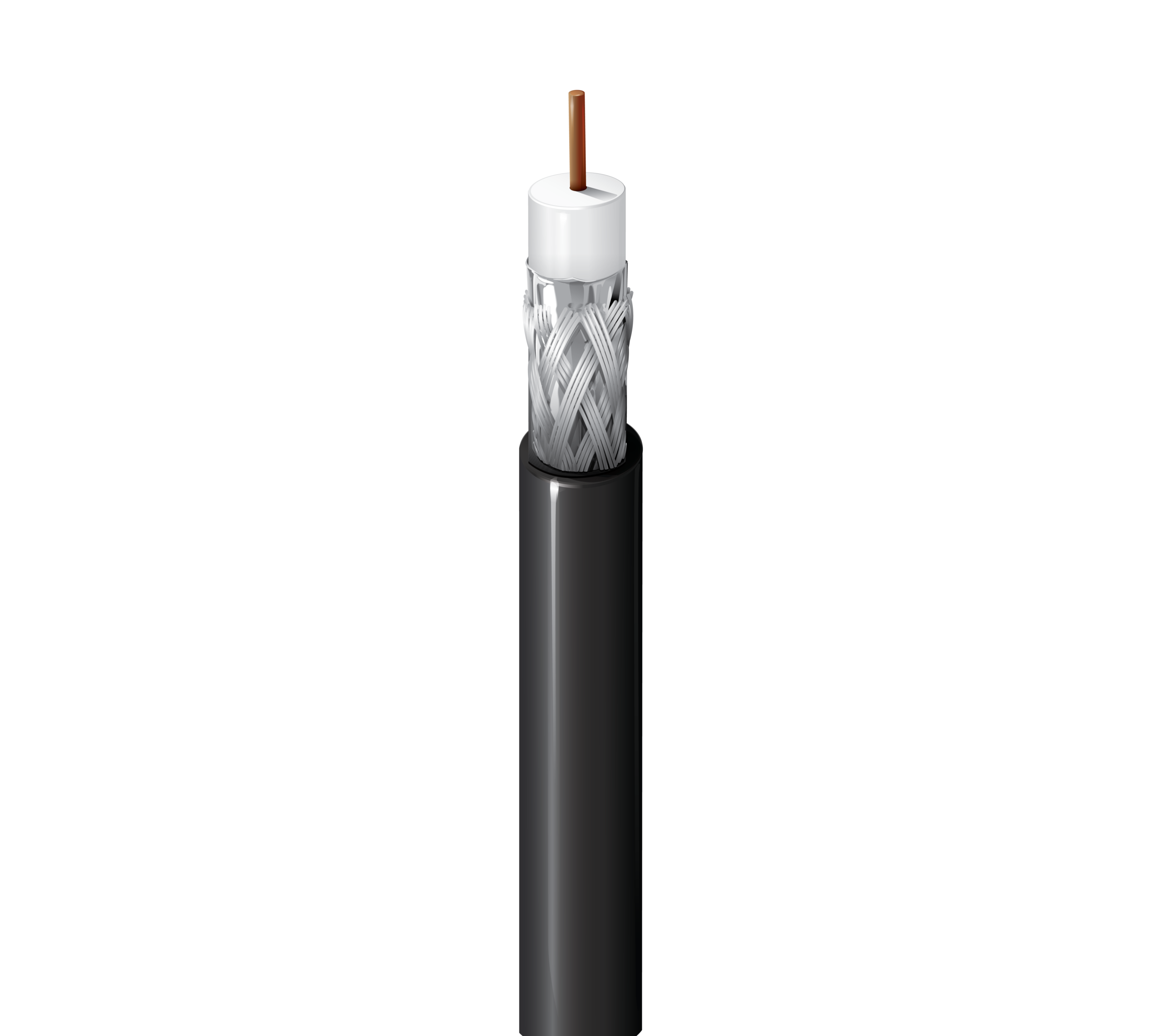

Belden 7733A — RG-8 50 Ohm Coaxial Cable
- Part No. 7733A: Belden 50-ohm RG-8 RF coaxial cable
- Impedance: 50 ohms nominal
- Conductor: 10 AWG Solid Bare Copper
- Shield: 90% TC Braid Shield
- Jacket: PVDF — CMP (Plenum)
- Applications: VSAT ground station antenna feedlines, Long outdoor antenna runs
Belden 7733A is a 50-ohm RG-8 coaxial cable built for wireless transmission. With a 90% TC Braid Shield outer conductor and PVDF jacket (fluoropolymer — plenum-rated for air-handling spaces (CMP)), it delivers consistent impedance and controlled attenuation across a wide frequency range. NEC rated CMP (Plenum).

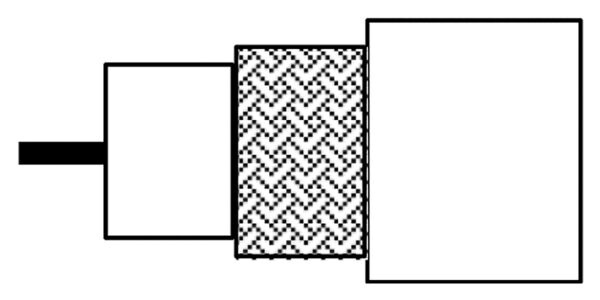

Construction
| Parameter | Detail |
|---|---|
| Part Number | 7733A |
| Impedance | 50 ohms |
| Type | RG-8 |
| Conductor | 10 AWG Solid Bare Copper |
| Shield | 90% TC Braid Shield |
| Jacket | Jacket |
| NEC Rating | CMP (Plenum) |
Applications
- VSAT ground station antenna feedlines
- Long outdoor antenna runs
- Cellular base station main feeder cables
- High-power broadcast transmitter outputs
- Low-loss replacement for standard RG-8
Available in custom cut lengths. Contact Bravo Satcom at sales@bravosatcom.com or +971 55 541 5892 for pricing.
