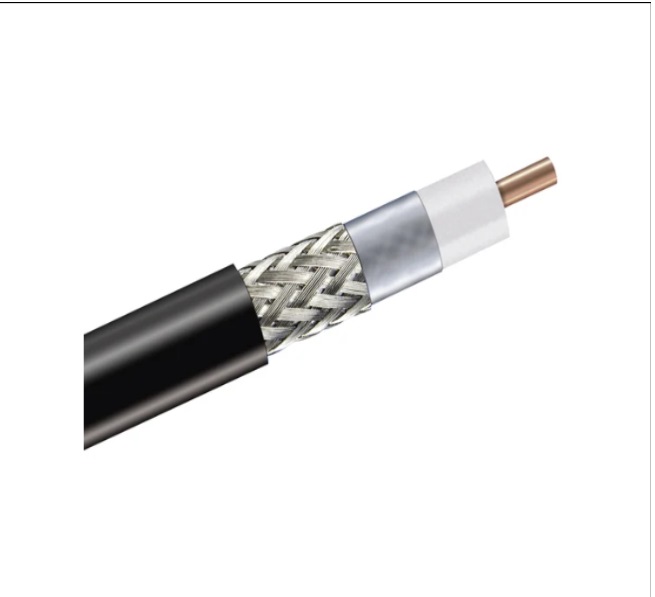

Product Details:
- Product Type: Braided coaxial cable
- Product Brand: CNT®
- Product Series: CNT-400
General Specifications:
- Braid Coverage: 90%
- Cable Type: CNT-400
- Jacket Color: Black
Dimensions:
- Diameter Over Dielectric: 7.24 mm | 0.285 in
- Diameter Over Jacket: 10.29 mm | 0.405 in
- Diameter Over Tape: 7.391 mm | 0.291 in
- Inner Conductor OD (Outer Diameter): 2.74 mm | 0.108 in
- Outer Conductor OD (Outer Diameter): 8.08 mm | 0.318 in
- Nominal Size: 0.400 in
Electrical Specifications:
- Cable Impedance: 50 ohm
- Capacitance: 78 pF/m | 23.774 pF/ft
- DC Resistance, Inner Conductor: 4.69 ohms/km | 1.43 ohms/kft
- DC Resistance, Outer Conductor: 5.61 ohms/km | 1.71 ohms/kft
- DC Test Voltage: 2500 V
- Jacket Spark Test Voltage (rms): 4000 V
Additional Specifications:
- Maximum Frequency: 16.2 GHz
- Operating Frequency Band: 30 – 6000 MHz
- Peak Power: 16 kW
- Shielding Effectiveness: 90 dB
- Velocity: 85%
Attenuation:
Frequency (MHz) | Attenuation (dB/100 m) | Attenuation (dB/100 ft) |
---|---|---|
30.0 | 2.49 | 0.76 |
50.0 | 3.18 | 0.97 |
150.0 | 4.92 | 1.5 |
220.0 | 6.23 | 1.9 |
450.0 | 8.86 | 2.7 |
900.0 | 12.8 | 3.9 |
1500.0 | 16.7 | 5.1 |
1800.0 | 18.4 | 5.6 |
2000.0 | 19.4 | 5.9 |
2400.0 | 21.65 | 6.6 |
2500.0 | 22 | 6.7 |
3000.0 | 24.6 | 7.5 |
4000.0 | 28.87 | 8.8 |
4500.0 | 30.84 | 9.4 |
5000.0 | 32.81 | 10 |
5200.0 | 33.46 | 10.2 |
5500.0 | 34.78 | 10.6 |
5800.0 | 35.76 | 10.9 |
6000.0 | 36.42 | 11.1 |
Mechanical Specifications:
- Minimum Bend Radius, single Bend: 25.4 mm | 1 in
- Tensile Strength: 73 kg | 160.937 lb
- Bending Moment: 0.7 N-m | 6.196 in lb
- Flat Plate Crush Strength: 0.7 kg/mm | 39.198 lb/in
Environmental Specifications:
- Installation Temperature: -40 °C to +85 °C (-40 °F to +185 °F)
- Operating Temperature: -40 °C to +85 °C (-40 °F to +185 °F)
- Storage Temperature: -70 °C to +85 °C (-94 °F to +185 °F)
Packaging and Weights:
- Cable Weight: 0.1 kg/m | 0.067 lb/ft
Regulatory Compliance/Certifications:
- Agency Classification:
- CHINA-ROHS: Below maximum concentration value
- ISO 9001:2015: Designed, manufactured, and/or distributed under this quality management system
- ROHS: Compliant
- UK-ROHS: Compliant
