CPI Model 1132, 1.2m Rx/Tx Ku-Band Antenna

Antenna Size and Frequency Range

• Antenna Size: 1.2 m (48 in.)
• Operating Frequency:
  • Receive: 10.70 – 12.75 GHz
  • Transmit: 13.75 – 14.50 GHz

Gain and Noise Temperature

• Midband Gain:
  • Receive: 41.5 dBi
  • Transmit: 43.0 dBi
• Antenna Noise Temperature:
  • 20° Elevation: 46°K
  • 30° Elevation: 43°K

Antenna Performance

• Antenna Sidelobe Envelope: Per ITU-R S.580-6
• Antenna Beamwidth:
  • Receive: 1.5°
  • Transmit: 1.2°
• Polarization: Linear, Orthogonal
• Cross-Pol Isolation:
  • 30 dB on Axis
  • 26 dB in 1 dB Contour

Electrical Specifications

• Port-Port Isolation:
  • Transmit: 85 dB Min
  • Receive: 30 dB Min
• VSWR:
  • Transmit: 1.3:1 Max
  • Receive: 1.5:1 Max
• Insertion Loss:
  • Transmit: 0.2 dB Max
  • Receive: 0.4 dB Max

Mechanical and Environmental Performance

• Reflector Material: Glass Fiber Reinforced Polyester SMC
• Antenna Optics: Prime Focus, Offset, 0.8 F/D
• Mount Type: Elevation over Azimuth
• Elevation Adjustment Range: 10° to 90° Continuous Fine Adjustment
• Azimuth Adjustment Range: 360° Continuous, ±10° Fine Adjustment
• Mast Pipe Interface: 2.5 SCH Pipe (2.88″ OD) or 3.00″ OD (73 or 76mm)
• Max RF Equipment Weight: Tier 2 Feed Support – 12 lb (5.5 kg)

Wind Loading

• Operational: 45 mi/h (72 km/h)
• Survival: 125 mi/h (200 km/h)

Temperature

• Operational: -40° to 140°F (-40° to 60°C)
• Survival: -50° to 160°F (-46° to 71°C)

Rain

• Operational: 1/2″/h (13mm/h)
• Survival: 2″/h (51mm/h)

Ice

• Survival: 1/2″ (13mm) Radial Ice

Atmospheric Conditions

• Salt, Pollutants, and contaminants as encountered in coastal and industrial areas

Solar Radiation

• 360 BTU/h/ft² (1135 W/m²)

Benefits and Applications

The CPI Satcom & Antenna Technologies 1.2 Meter Ku-Band Antenna, Series 1132, offers numerous benefits for demanding commercial applications:

• Precision Engineering: The one-piece compression molded reflector is precision-manufactured for high-efficiency Ku-Band operation, ensuring optimal performance.

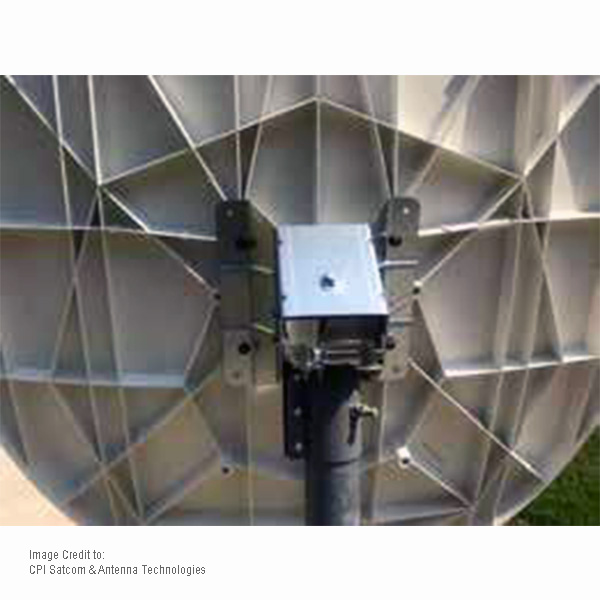

• Easy Installation: The Az/El mount is designed for easy installation on standard 2-7/8″ OD or 3.00″ OD Installation Mounts, with fine Azimuth and Elevation Adjustments.
• Durable Construction: The Az/El mount is constructed from heavy gauge pre-galvanized steel, providing strength and corrosion resistance for long-lasting performance.
• Versatile Feed Options: The antenna is available with a variety of feed and feed support options, allowing for customization to meet specific requirements.
• Low Cross-Polarization: The long focal length optics of the antenna contribute to low cross-polarization, improving signal quality.
• Rugged and Resilient: The antenna’s durable and rugged construction ensures ease of shipping and handling, as well as the ability to withstand harsh environmental conditions.

These features and benefits make the CPI Satcom & Antenna Technologies 1.2 Meter Ku-Band Antenna, Series 1132, an ideal choice for a wide range of demanding commercial applications, including:

• Satellite Communications: The antenna’s high gain and low noise temperature make it well-suited for satellite communication systems, such as those used in the telecommunications, broadcasting, and military sectors.
• Remote Monitoring and Control: The antenna’s versatility and rugged construction make it a reliable choice for remote monitoring and control applications, such as those found in the oil and gas, utilities, and transportation industries.
• Emergency and Disaster Response: The antenna’s ability to withstand harsh environmental conditions and its ease of deployment make it a valuable asset for emergency and disaster response operations, where reliable communication is crucial.
• Broadband Internet Connectivity: The antenna’s Ku-Band frequency range and high-efficiency performance make it a suitable choice for providing broadband internet connectivity, particularly in areas with limited infrastructure.

The CPI Satcom & Antenna Technologies 1.2 Meter Ku-Band Antenna, Series 1132, is a versatile and reliable solution for a wide range of demanding commercial applications. With its precision engineering, durable construction, and customizable options, this antenna provides the performance and resilience needed to meet the challenging requirements of modern satellite communication and remote monitoring systems. Whether you’re in the telecommunications, energy, or disaster response sector, the CPI Satcom & Antenna Technologies 1.2 Meter Ku-Band Antenna, Series 1132, is an excellent choice for your critical communication needs.
