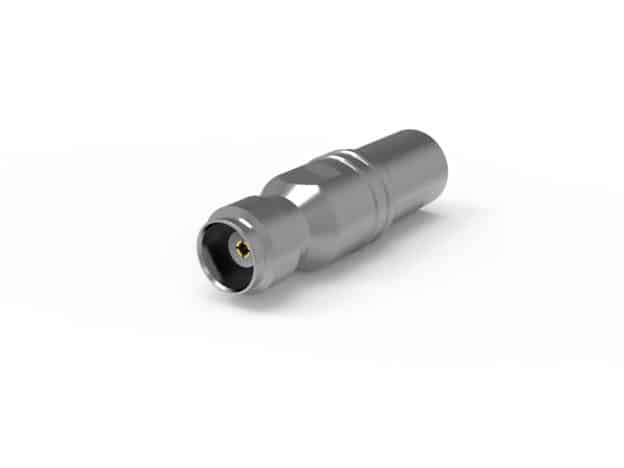

EZ-400-TF-X, TNC-Female (Jack), Straight, Spring Finger, Crimp, Type Connector for LMR 400 Coaxial Cable
TNC female (jack), straight, EZ style connector for LMR-400, TCOM-400, and T-RAD-400-FR cables. The EZ-400-TF-X eliminates assembly errors and soldering with crimp-style outer contacts and spring finger inner contacts.
In stock (can be backordered)
Its optimal and consistent termination is guaranteed by its no-braid trim design, which also prevents FOD. Surface contact is optimized, and current density is kept to a minimum, thanks to the BeCu pins’ design.
The EZ connectors are ideal for use in environments with extreme cold and high-vibration, where the center conductor may contract due to the strong spring force provided by the connectors.
Featuring a contact design analogous to that of the BNC series but with improved frequency performance, the TNC is a miniature, threaded, weatherproof connector.
| Weight | 0.0336 kg |
|---|---|
| Dimensions | 4.5 × 1.4 × 1.4 cm |
| Brand | Times Microwave System |
| Interface | TNC |
| Gender | female (jack) |
| Orientation | straight |
| PIM Rating | N/A |
| Max Frequency (GHz) | 6 |
| VSWR Freq | <1.30:1 |
| VSWR Frequency (GHz) | 2.5 |
| Inner Contact Attach | Spring Finger |
| Outer Contact Attach | Crimp |
| Body Finish | Alballoy |
| Pin Finish | Gold |
