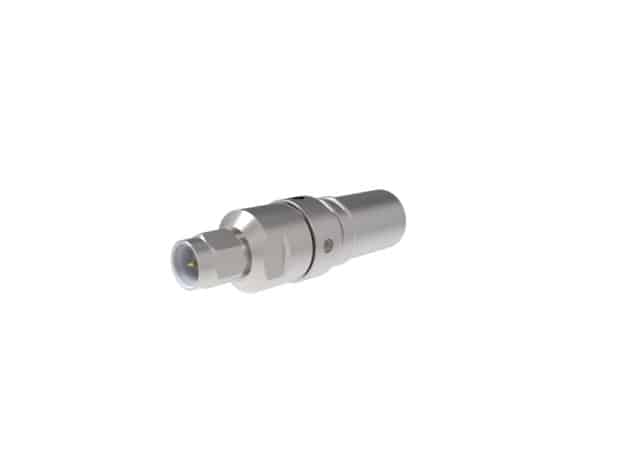

EZ-400-SM-X, SMA-Male (Plug), Straight, Spring Finger, Crimp, Type Connector for LMR 400 Coaxial Cable
Type SMA, male (plug), straight, EZ style connector for LMR-400, TCOM-400, and T-RAD-400-FR type cables. The EZ-400-SM-X eliminates assembly errors and soldering with crimp-style outer contacts and spring finger inner contacts.
In stock (can be backordered)
Its optimal and consistent termination is guaranteed by its no-braid trim design, which also prevents FOD. Surface contact is optimized, and current density is kept to a minimum, thanks to the BeCu pins’ design.
The EZ connectors are ideal for use in environments with extreme cold and high-vibration, where the center conductor may contract due to the strong spring force provided by the connectors. The SMA connector is a low-profile, high-performance, threaded coaxial RF connection.
| Weight | 0.02884 kg |
|---|---|
| Dimensions | 4.685 × 1.5 × 1.5 cm |
| Brand | Times Microwave System |
| Interface | SMA |
| Gender | male (plug) |
| Orientation | straight |
| Max Frequency (GHz) | 8 |
| VSWR Freq | <1.35:1 |
| VSWR Frequency (GHz) | 2.5 |
| Inner Contact Attach | Spring Finger |
| Outer Contact Attach | Crimp |
| Body Finish | Bi-Metal |
| Pin Finish | Gold |
