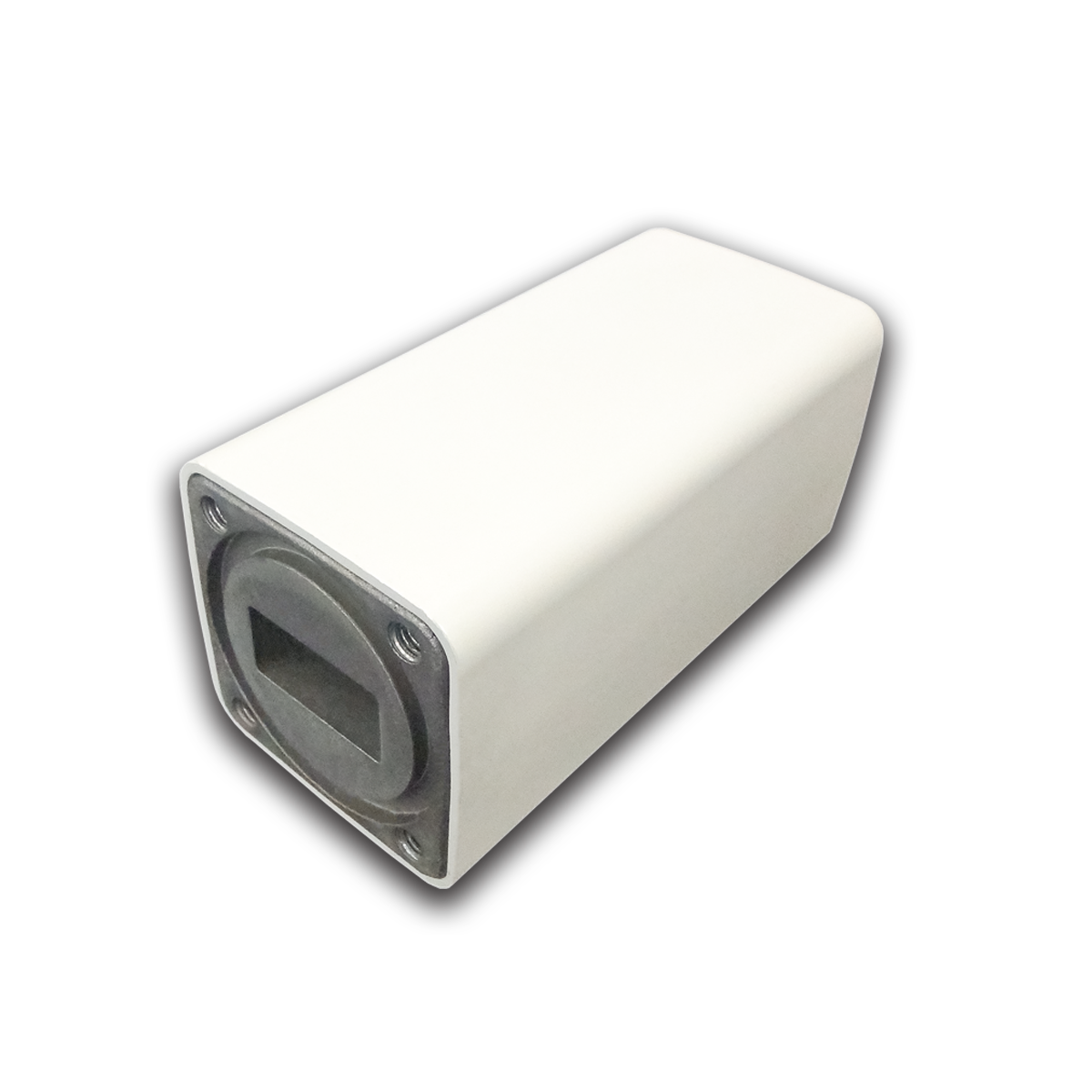

Parameter | Specifications |
---|---|
RF Input Interface | Waveguide, WR75 (with Groove) |
IF Output Interface | – Coaxial Connector, N-type Female (50 Ω) |
– Coaxial Connector, F-type Female (75 Ω) | |
RF Frequency | – RF Frequency: 12.2 to 12.75 GHz |
IF Frequency | – IF Frequency: 950 to 1,500 MHz |
LO Frequency | – LO Frequency: 11.25 GHz |
Linear Gain | – Linear Gain: 57 dB typ., 52 dB min. @ +25 ℃ |
Noise Figure (NF) | – Noise Figure (NF): 0.8 dB typ., 1.0 dB max. @ +25 ℃ |
Input Power Voltage Requirement | – Input Power Voltage Requirement: +24 VDC (+10 to |
+24 VDC) | |
Current Consumption | – Current Consumption: 200 mA max. |
Operating Temperature Range | – Operating Temperature Range: -40 to +60 ℃ |
Waterproof / Dustproof (IP-code) | – Waterproof / Dustproof (IP-code): IP67 |
Weight | – F-type: 210 g |
– N-type: 240 g | |
Dimensions | – Dimensions (LxWxH): 82.2 x 40 x 40 mm |
(w/o Interfaces & Screws) |
Frequency Organization
Parameter | Specifications |
---|---|
RF Frequency | 12.2 to 12.75 GHz |
IF Frequency | 950 to 1,500 MHz |
LO Frequency | 11.25 GHz |
Low Noise Performance
Parameter | Specifications |
---|---|
Noise Figure (NF) | 0.8 dB typ., 1.0 dB max. @ +25 ℃ |
LO Frequency Stability
Model No. | RF Frequency | Reference Type | LO Frequency Stability | IF Connector |
---|---|---|---|---|
NJR2845GEF | 12.2 to 12.75 GHz | External Ref. | Depends on External Reference | F-type (75Ω) |
NJR2845GEN | 12.2 to 12.75 GHz | External Ref. | Depends on External Reference | N-type (50Ω) |
Small Size & Light Weight
Parameter | Specifications |
---|---|
Weight | F-type: 210 g / N-type: 240 g |
Others
- RoHS Compliance
Series Line-up
Model No. | RF Frequency | Reference Type | LO Frequency Stability | IF Connector |
---|---|---|---|---|
NJR2845GEF | 12.2 to 12.75 GHz | External Ref. | Depends on External Reference | F-type (75Ω) |
NJR2845GEN | 12.2 to 12.75 GHz | External Ref. | Depends on External Reference | N-type (50Ω) |
