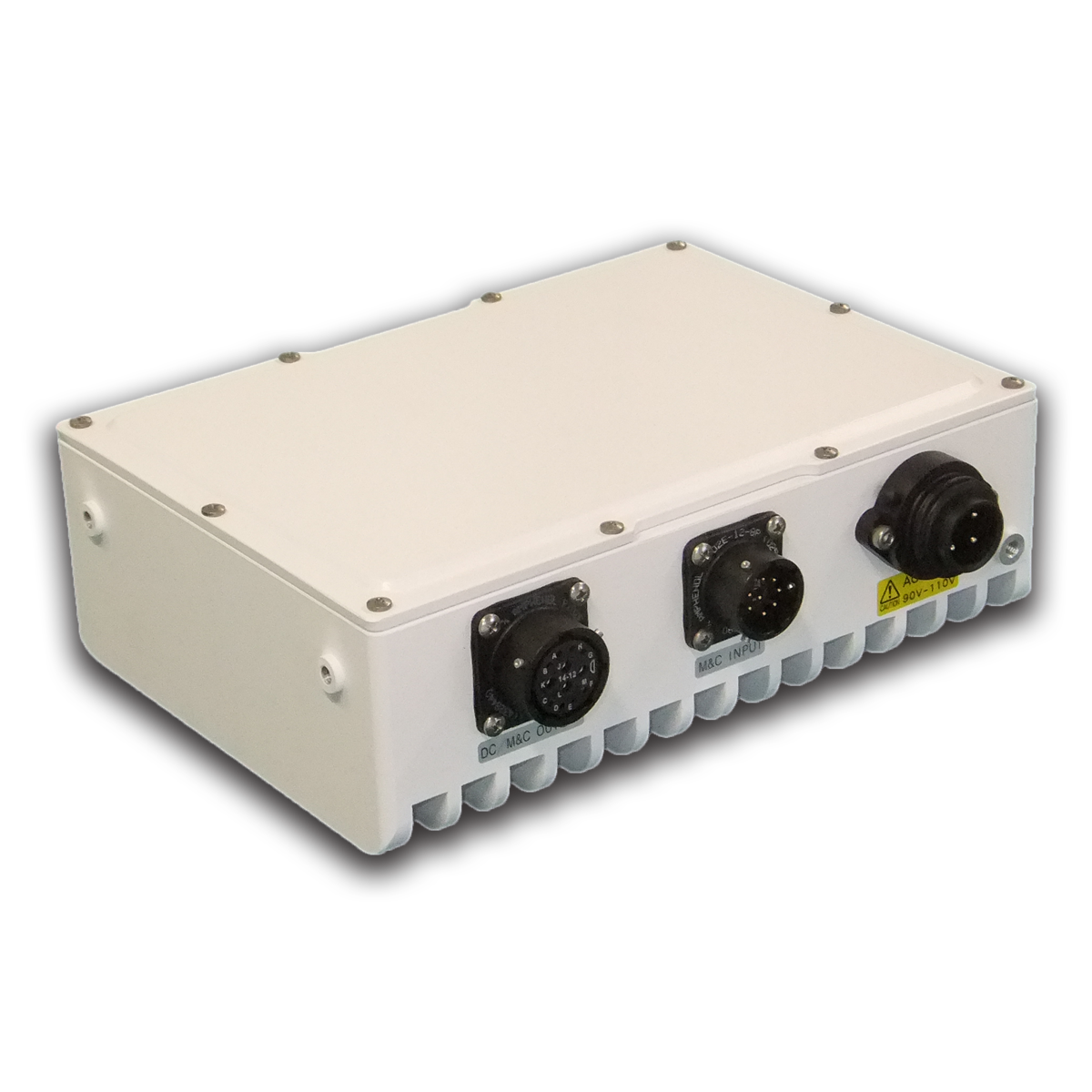

NJZ1289 250W Outdoor AC/DC Power Supply Unit
An outdoor 250 W AC/DC power supply unit that supplies stable +48 VDC power to compatible BUCs.
The NJZ1289 is an outdoor-rated power supply unit that converts 100-240 VAC input into a stable +48 VDC output at up to 250 W, delivered to compatible block upconverters (such as the NJT8319 and NJT8370 series) via a waterproof circular connector. It features power factor correction, convection air cooling, an IP67 rating, and weighs approximately 1.6 kg. It is RoHS compliant.
| Parameter | Specification |
|---|---|
| Input AC Power Interface | C016 20C003 200 12 / Amphenol |
| Output DC Power Interface | PT02E-14-12S(025) / Amphenol |
| Input AC Power Voltage Range | Specified Value: 100 to 240 VAC; Maximum Rated Value: 90 to 264 VAC |
| Input AC Power Frequency | 50 / 60 Hz |
| Input AC Power Current | 3.6 A max. |
| Output DC Power Voltage | +48 V nom. |
| Output DC Power Capacity | 250 W max. |
| Operating Temperature Range | -40 to +55 ℃ |
| Waterproof / Dustproof (IP-code) | IP67 |
| Weight | 1.6 kg |
| Dimensions | (L) 186 x (W) 133 x (H) 60 mm (w/o Interfaces & Screws) |
