High-performance DVB-S2X modems that cater to a diverse range of applications across various markets? Look no further than our Dialog Modem Series, a cutting-edge solution designed to meet your connectivity needs with unparalleled efficiency.
Two-Way High Throughput Modems: Our modems are engineered for two-way communication, offering exceptional throughput and reliability. Whether you’re in need of broadband access for Small Offices, Home Offices (SOHO), or Small and Medium Enterprises (SMEs), our modems deliver seamless connectivity tailored to your requirements.
Flexible Integration with Dialog’s Platform: The Dialog Modem Series is incredibly flexible, allowing seamless integration within the multi-service Dialog platform. With a wide array of shared features, these modems can be effortlessly mixed in a single satellite network. This versatility ensures that your network remains adaptable and capable of meeting evolving demands.
Advanced Waveform Technologies: Our modems harness Dialog’s cutting-edge return waveform technologies: MF-TDMA and Mx-DMA MRC. These innovations combine MF-TDMA flexibility with on-demand variable bandwidth allocation of SCPC, ensuring optimum efficiency and availability. Experience the future of connectivity with Dialog’s innovative waveform solutions.
Wideband Operations for Unmatched Performance: Experience wideband operations at speeds of up to 480 Msps in the forward channel. This high-speed capability empowers service providers to establish networks of any type and size, leveraging the full potential of available satellite resources.

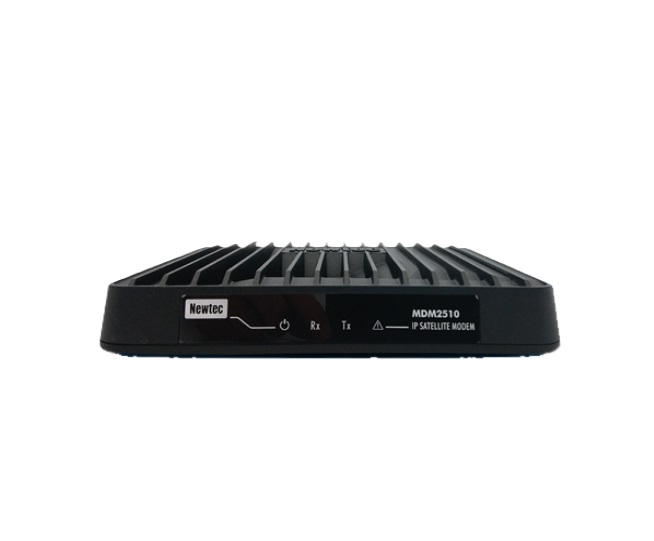

Perfect for Every Application: Whether you’re serving SOHO customers, SMEs, or handling Mobility and Cellular Backhaul applications, our MDM2510 modem is the ideal choice. This compact, energy-efficient modem offers robust performance, making it the perfect solution for a wide range of connectivity needs.
At Dialog, we redefine connectivity standards. Join us in the future of high-throughput communication. Elevate your network’s efficiency, reliability, and performance with the Dialog Modem Series.
Network Topology | Rx Modulation | Tx Modulation | Symbol Rates |
---|---|---|---|
DVB-S2X | QPSK, 8PSK, 16APSK, 32APSK, 64APSK (Annex-M) | QPSK, 8PSK, 16APSK, 32APSK, 64APSK | 1 Msps to 480 Msps |
DVB-S2 | QPSK, 8PSK, 16APSK, 32APSK | QPSK, 8PSK, 16APSK, 32APSK | 1 Msps to 64 Msps |
Mx-DMA MRC | QPSK, 8PSK | 16APSK, 32APSK, 64APSK | Up to 20 Msps |
Mx-DMA HRC | 16APSK, 32APSK, 64APSK | QPSK, 8PSK | Up to 20 Msps |
MF-TDMA | QPSK, 8PSK | 16APSK, 32APSK | Up to 3.8 Msps |
Modem Interfaces | |
---|---|
Tx Interface | |
Connector | F-Type 75 Ohm |
Frequency Range | L-band 950-2400 MHz |
TX Level (L-band) | -55 dBm to +5 dBm |
Frequency Range (S-band) | S-band 2750-3000 MHz |
TX Level (S-band) | 0 dBm |
BUC Reference | 10/50 MHz |
BUC Power Supply | 24V, 2.5A |
Rx Interface | |
Connector | F-Type 75 Ohm |
Frequency | 950-2150 MHz |
Rx Level | -65 to -25 dBm |
LNB Power Supply | 13/18V, 0.5A |
LNB Band Selection | 13/18V or 22kHz tone |
LNB Polarization Selection | 13/18V |
Data Interface | |
LAN | Four 10/100/1000 Mbps Ethernet, auto MDI/MDIX |
Management | |
---|---|
Protocols Supported | UDP, IPv4 & IPv6, ICMP, TCP, IGMPv1, IGMPv2, ARP, DHCP, DNS, NTP, BGP, NAT, Diffserv Marking |
Multilingual Web GUI | Yes |
Manage Web GUI via Configurable Management IP Address | Yes |
Power Supply | |
---|---|
Input Voltage | 50Hz\220-260 V, 60Hz\100-130 V |
24VDC (External Adaptor) | Yes |
Mains Power Consumption | 120W maximum |
Modem Power Consumption | 21W maximum |
This table outlines the input voltage options, external 24VDC adaptor, maximum mains power consumption, and maximum modem power consumption specifications.
