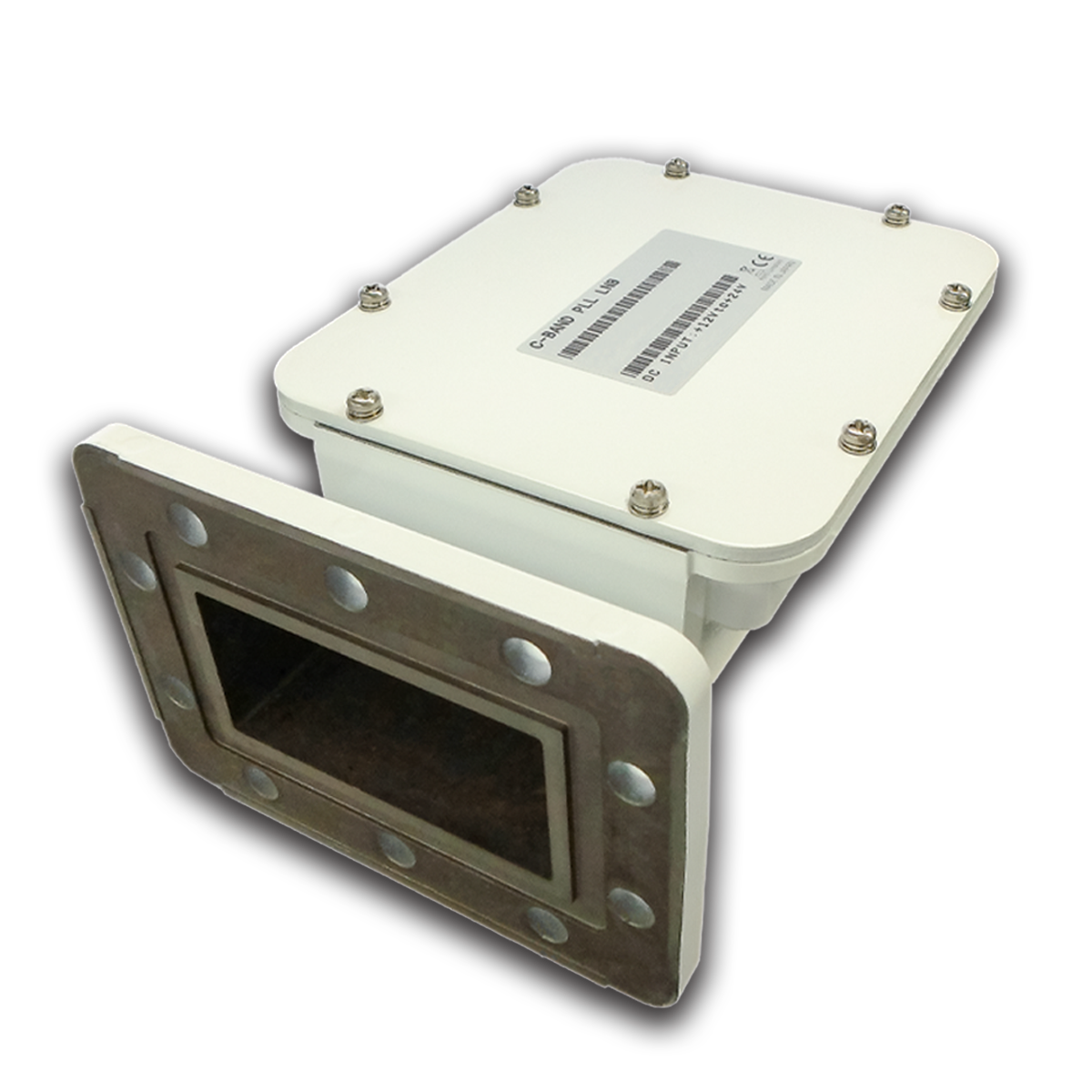

NJS8497E Series Standard C-band PLL LNB (External Reference, Flange-type)
A standard C-band low-noise block downconverter (3.625-4.2 GHz) that synchronizes to an external 10 MHz reference signal for precise frequency stability.
The NJS8497E is a PLL low noise block downconverter covering the standard C-band range of 3.625 to 4.2 GHz, down-converting to an IF output of 950 to 1,525 MHz using a 5.15 GHz local oscillator. It locks to an externally supplied 10 MHz reference signal, offers a typical noise temperature of 15 K, and weighs about 670 g. It is available with F-type or N-type IF connectors and is RoHS compliant.
| Parameter | Specification |
|---|---|
| RF Input Interface | Waveguide, CPR229 (with Groove) |
| IF Output Interface | Coax. Connector, N-type Female (50 Ω) / Coax. Connector, F-type Female (75 Ω) |
| RF Frequency | 3.625 to 4.2 GHz |
| IF Frequency | 950 to 1,525 MHz |
| LO Frequency | 5.15 GHz |
| Linear Gain | 67 dB typ., 59 dB min. @ +25 ℃ |
| Noise Temperature (NT) | 15 K typ., 30 K max. @ +25 ℃ |
| Input Power Voltage Requirement | +24 VDC (+12 to +24 VDC) |
| Current Consumption | 350 mA max. |
| Operating Temperature Range | -40 to +60 ℃ |
| Waterproof / Dustproof (IP-code) | IP67 |
| Weight | 670 g |
| Dimensions | (L) 144.5 x (W) 98.4 x (H) 69.9 mm (w/o Interfaces & Screws) |
