NJT8102EN Series — Insat C-band 2W Mini-BUC
A compact, weatherized block up-converter for the Insat C-band (6.725–7.025 GHz) that delivers up to 2W (+33 dBm P1dB) output.

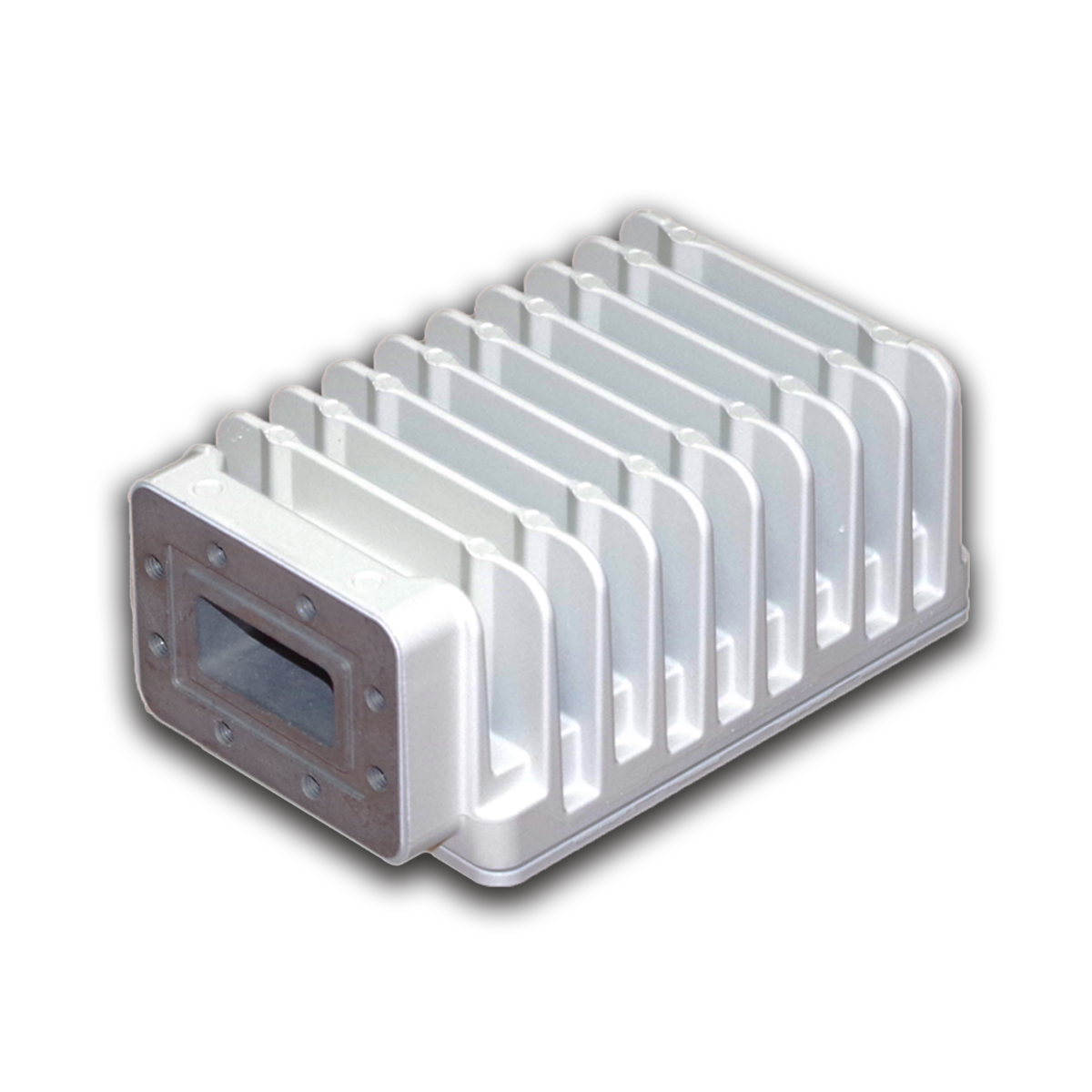

The NJT8102E series is a mini block up-converter for Insat C-band operation (6.725 to 7.025 GHz), providing RF output power up to 2W (+33 dBm P1dB) in a compact, weatherized enclosure. It covers an IF frequency range of 965 to 1,265 MHz with a 5.76 GHz LO frequency, offers low distortion (ACPR of -26 dBc at +33 dBm), draws roughly 18W, and weighs about 800 g. It is RoHS compliant.
| Parameter | Specification |
|---|---|
| RF Output Interface | Waveguide, CPR137 (with Groove) |
| IF Input Interface | Coax. Connector, N-type Female (50 Ω) Coax. Connector, F-type Female (75 Ω) |
| RF Frequency | 6.725 to 7.025 GHz |
| IF Frequency | 965 to 1,265 MHz |
| LO Frequency | 5.76 GHz |
| P1dB Output Power | +33 dBm min. over temperature (@ 1dB G.C.P.) |
| ACPR | -26 dBc typ. @ Pout = +33 dBm |
| Linear Gain | 58 dB nom., 52 dB min. |
| Input Power Voltage Requirement | +24 VDC (+12 to +30 VDC) |
| Power Consumption @ P1dB | 18 W typ., 22 W max. |
| Operating Temperature Range | -40 to +60 ℃ |
| Waterproof / Dustproof (IP-code) | IP67 |
| Weight | 800 g |
| Dimensions | (L) 135.4 x (W) 85 x (H) 56 mm (w/o Interfaces & Screws) |
