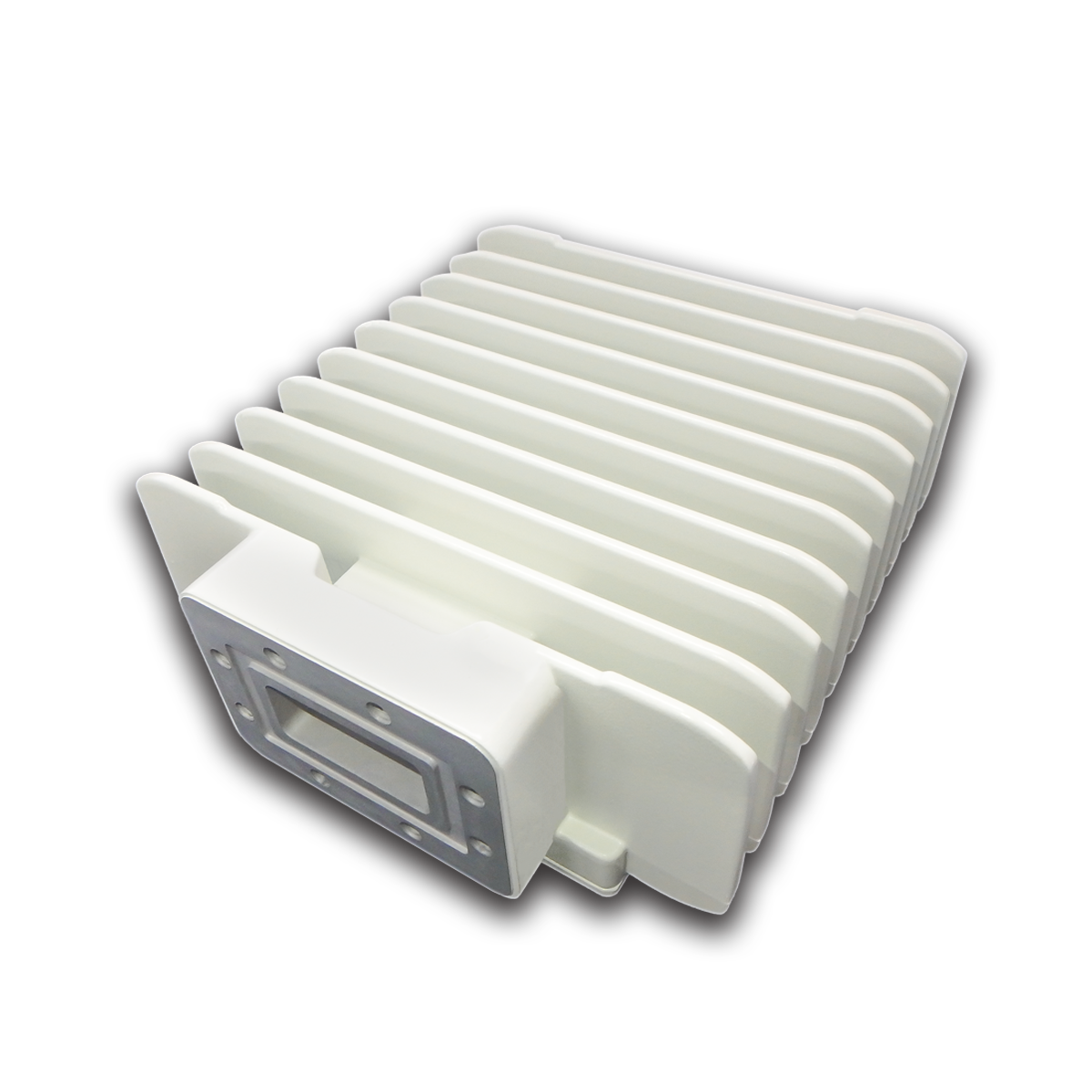

NJT8105N Series — Standard C-band 5W Mini-BUC
A compact, weatherized block up-converter for Standard C-band (5.85–6.425 GHz) that delivers up to 5W (+37 dBm P1dB) output.
The NJT8105 series is a mini block up-converter for Standard C-band operation (5.85 to 6.425 GHz), providing RF output power up to 5W (+37 dBm P1dB) in a compact, weatherized housing. It covers an IF frequency range of 950 to 1,525 MHz with a 4.9 GHz LO frequency, is built for high power efficiency (around 40W consumption), and weighs approximately 1.37 kg. It includes a built-in LED status indicator and is RoHS compliant.
| Parameter | Specification |
|---|---|
| RF Output Interface | Waveguide, CPR137 (with Groove) |
| IF Input Interface | Coax. Connector, N-type Female (50 Ω) Coax. Connector, F-type Female (75 Ω) |
| RF Frequency | 5.85 to 6.425 GHz |
| IF Frequency | 950 to 1,525 MHz |
| LO Frequency | 4.9 GHz |
| P1dB Output Power | +37 dBm min. over temperature (@ 1dB G.C.P.) |
| Linear Gain | 62 dB nom., 56 dB min. |
| Input Power Voltage Requirement | +24 VDC (+12 to +30 VDC) |
| Power Consumption @ P1dB | 40 W typ., 44 W max. |
| Operating Temperature Range | -40 to +60 ℃ |
| Waterproof / Dustproof (IP-code) | IP67 |
| Weight | 1.37 kg |
| Dimensions | (L) 149.1 x (W) 134 x (H) 57 mm (w/o Interfaces & Screws) |
