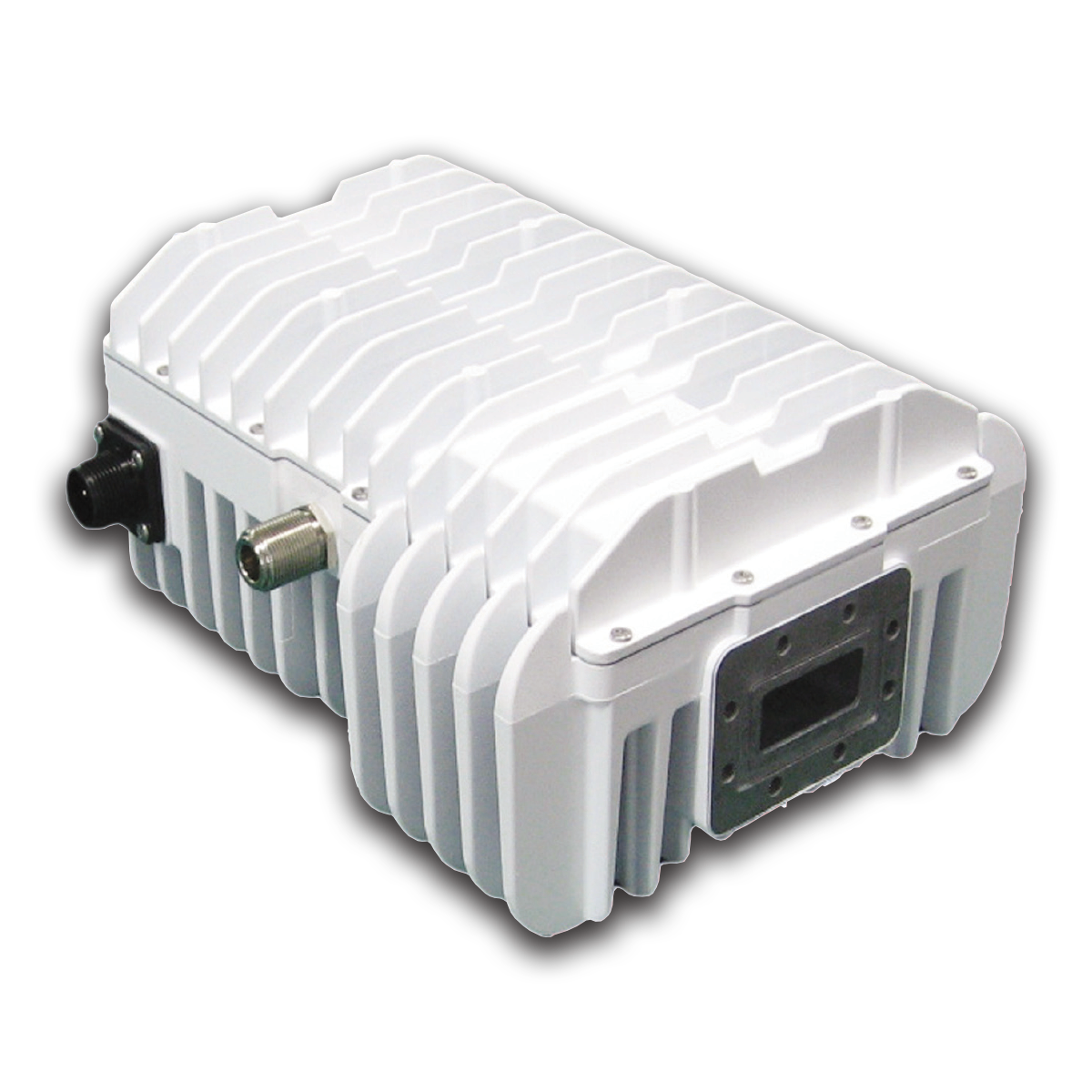

NJT5762N Series — Standard C-band 10W BUC
A fanless, weatherized block up-converter for Standard C-band (5.85–6.425 GHz) that delivers up to 10W (+40 dBm P1dB) of output, with an optional M&C interface.
The NJT5762 series is a block up-converter for Standard C-band operation (5.85 to 6.425 GHz), delivering RF output power up to 10W (+40 dBm P1dB) from a fanless, weatherized enclosure. It covers an IF frequency range of 950 to 1,525 MHz with a 4.9 GHz LO frequency, and offers strong linearity with an IM3 rating of -28 dBc at +37 dBm output. Power consumption is around 69W, and the unit weighs about 3.2 kg. It is available in variants that add FSK-based monitor-and-control (M&C) communications, and can be configured with power delivered via the IF connector, an MS connector, or an AC/DC power supply. All versions include a built-in LED status indicator and are RoHS compliant.
| Parameter | Specification |
|---|---|
| RF Output Interface | Waveguide, CPR137 (with Groove) |
| IF Input Interface | Coax. Connector, N-type Female (50 Ω) Coax. Connector, F-type Female (75 Ω) |
| RF Frequency | 5.85 to 6.425 GHz |
| IF Frequency | 950 to 1,525 MHz |
| LO Frequency | 4.9 GHz |
| P1dB Output Power | +40 dBm min. over temperature (@ 1dB G.C.P.) |
| IM3 | -28 dBc typ. @ total power = +40 dBm – 3 dB |
| Linear Gain | 64 dB nom., 58 dB min. |
| Input Power Voltage Requirement | +24 / +48 VDC (+18 to +60 VDC) [DC Power Models] 90 to 264 VAC [AC Power Models] |
| Power Consumption | 69 W typ., 75 W max. (@ P1dB) |
| Operating Temperature Range | -40 to +55 ℃ |
| Waterproof / Dustproof (IP-code) | IP67 |
| Weight | 3.2 kg |
| Dimensions | (L) 219.5 x (W) 175 x (H) 99 mm (w/o Interfaces & Screws) |
