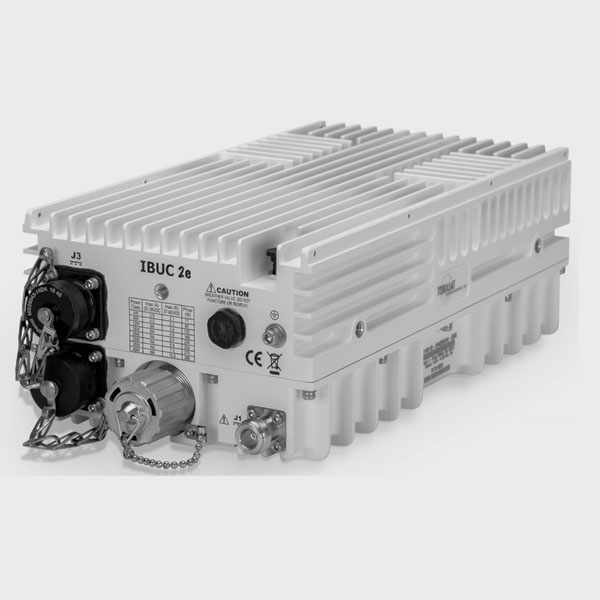

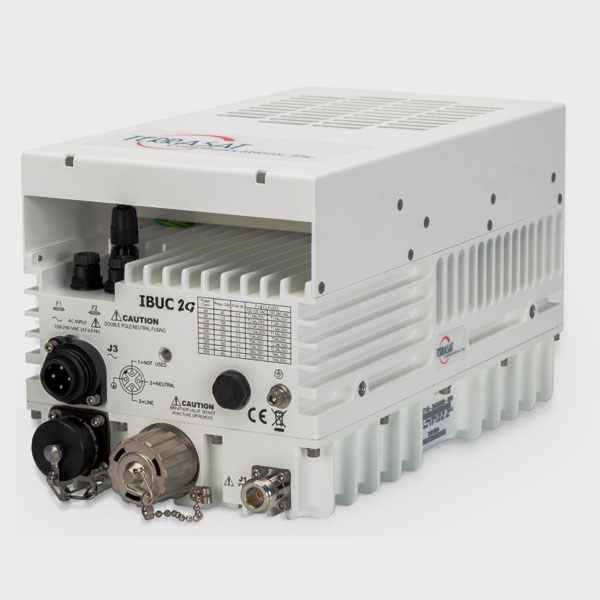

Name: Terrasat 5W to 80W GaAs, C-Band BUC
Brand: Terrasat
SKU: 2915
Availability: InStock

Band	Designation	RF Frequency Range (MHz)	IF Frequency Range (MHz)	Sense
1	Standard C	5850 to 6425	950 to 1525	Inverting/Non-Inverting
2	Palapa	6425 to 6725	975 to 1275	Inverting/Non-Inverting
3	INSAT	6725 to 7025	1150 to 1450	Inverting/Non-Inverting
4	Extended C	5850 to 6650	950 to 1750	Inverting/Non-Inverting
5	Full C	5850 to 6725	975 to 1850	Inverting/Non-Inverting

Input Characteristics:

Impedance: 50 Ohms
VSWR: 1.5:1
Connector Type: Standard: Type N Female; Options: Type F (75 Ohm), TNC (50 Ohm)
Input Power Detection: Standard Range: -55 to -20 dBm; Optional Range: -35 to 0 dBm

Gain Details:

Small Signal Gain (L-band to RF) with 0 dB Attenuation:

Power Output	Standard Version	WGS Version
5W	68 dB min	57 dB min
10W	71 dB min	60 dB min
15W	72.8 dB min	61.8 dB min
20W	74 dB min	63 dB min
25W	75 dB min	64 dB min
30W	75.8 dB min	64.8 dB min
40W	77 dB min	66 dB min
50W	78 dB min	67 dB min
60W	79 dB min	68 dB min
80W	80 dB min	69 dB min

Attenuation Range: 30 dB adjustable in 0.1 dB steps
Gain Flatness:

Band Full Band Over 36 MHz Over 1 MHz

1/2/3 3 dB p-p max 1 dB p-p max 0.25 dB p-p max

4/5 4 dB p-p max 1.5 dB p-p max 0.25 dB p-p max
Temperature-Related Gain Variation:

Band Open Loop With AGC

1/2/3 3 dB p-p max 1 dB p-p max

4/5 4 dB p-p max 1 dB p-p max

Output Specifications:

Interface: CPR-137G or N(f)
VSWR: 1.5:1 max
Output Power at P1dB:

Power Rating Output Power (dBm)

5W +37 min

10W +40 min

15W +41.8 min

20W +43 min

25W +44 min

30W +44.8 min

40W +46 min

50W +47 min

60W +47.8 min

80W +49 min

Note: For 40W and above, output power in Bands 4 & 5 is reduced by 0.5 dB.
Intermodulation Distortion (IMD3): -26 dBc max (with two carriers, 3 dB total output back-off)
Level Stability with Automatic Level Control (ALC): ±0.5 dB
Output Power Detection Range: From rated power to -20 dB
Power Reading Accuracy: ±1.0 dB max
Spurious Emissions:
- In-Band: -65 dBc
- Out-of-Band: Complies with EN 301 443 & MIL STD 188-164C
Harmonics: -50 dBc max
Output Noise Power Density:
- Transmit Band: < -78 dBm/Hz
- Receive Band: < -145 dBm/Hz

Phase Noise Performance:

Single Side Band (SSB) Phase Noise:

Offset Frequency	External Reference	IBUC 2
10 Hz	-115 dBc/Hz	-54 dBc/Hz
100 Hz	-140 dBc/Hz	-79 dBc/Hz
1 kHz	-150 dBc/Hz	-89 dBc/Hz
10 kHz	-155 dBc/Hz	-94 dBc/Hz
100 kHz	N/A	-100 dBc/Hz
1 MHz	N/A	-110 dBc/Hz

External Reference (Multiplexed on TX IFL):
- Frequency: 10 MHz
- Level: -12 to +5 dBm

Local Oscillator Frequencies:

Band	Inverting LO Frequency (MHz)	Non-Inverting LO Frequency (MHz)
1	7375	4900
2	7700	5300
3	8175	5760
4	7600	4900
5	7700	4900

Power Supply Options:

Voltage:
- DC: 48 ± 11 VDC
- AC: 100 to 240 VAC | 50 Hz / 60 Hz
- Options for 5W and 10W Units: 24 ± 4 VDC
- DC via Coax: Available on 5W to 25W units

Power Consumption:

Power Rating	DC Consumption (W)	AC Consumption (VA)
5W	60	75
10W	85	120
15W	125	150
20W	154	200
25W	168	210
30W	188	220
40W	300	330
50W	320	350
60W	360	400
80W	N/A	540

Monitoring and Control Interfaces:

Standard Versions:
- Ethernet: HTTP, Telnet, SNMPv2e via RJ45 connector
- RS232/485 and Handheld Terminal: Via MS-Type connector
- FSK: Multiplexed on TX IFL
Cyber Hardened Versions:
- Ethernet: HTTPS, SSHv2, SNMPv3 with USM and VACM via RJ45 connector
- RS232: Via MS-Type connector
- Security Features: Protection against Cross-Site Scripting (XSS), support for two redundant NTP servers, and FIPS 140-2 compatibility

Environmental Specifications:

Power Rating	Operating Temperature	Relative Humidity	Altitude
5W-50W	-40°C to +60°C	100% Condensing	Up to 10,000 ft (3,000 m) ASL
60W-80W	-40°C to +55°C	100% Condensing	Up to 10,000 ft (3,000 m) ASL

Mechanical Dimensions and Weight:

Power Rating	DC Powered Dimensions (inches)	DC Powered Weight (lbs)	AC Powered Dimensions (inches)	AC Powered Weight (lbs)
5W-10W	10.5 x 6 x 3.8	9.3	10.5 x 6 x 4.2	10.5
15W-30W	10.5 x 6 x 5.2	10.8	10.5 x 6 x 5.6	11.7
40W-80W	10.5 x 6 x 5.7	11.5	10.5 x 6 x 6.1	12.4

Dimensions in millimeters and weights in kilograms:

5W-10W DC Powered: 267 x 152 x 97 mm, 4.2 kg
5W-10W AC Powered: 267 x 152 x 107 mm, 4.8 kg
15W-30W DC Powered: 267 x 152 x 132 mm, 4.9 kg
15W-30W AC Powered: 267 x 152 x 142 mm, 5.3 kg
40W-80W DC Powered: 267 x 152 x 145 mm, 5.2 kg
40W-80W AC Powered: 267 x 152 x 155 mm, 5.6 kg
