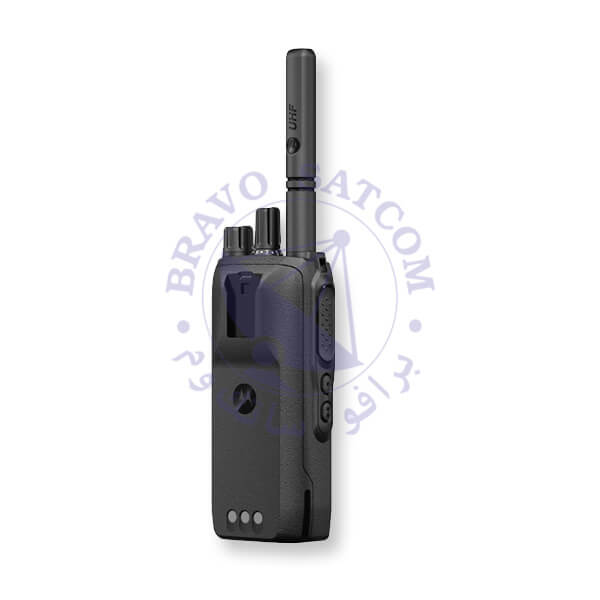

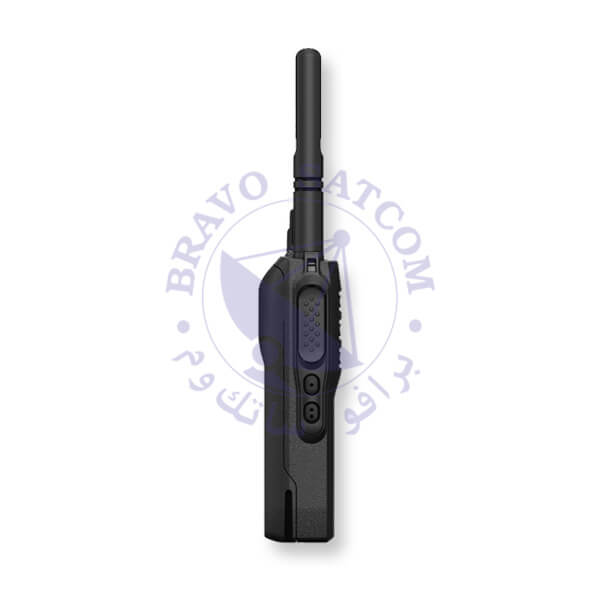

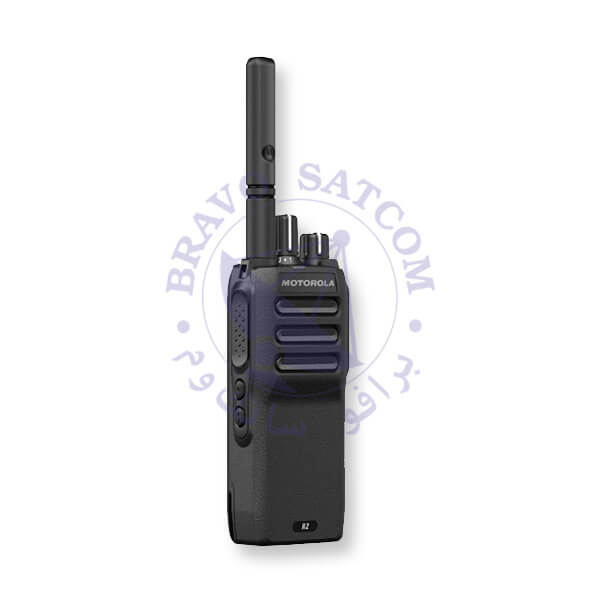

جهاز راديو محمول ثنائي الاتجاه Motorola MOTOTRBO R2
- SLEEK AND TOUGH
- ALL-WEATHER CONFIDENCE
- SLIM & LIGHTWEIGHT
- FULL-SHIFT LIFE
- DURABLE, LIGHTWEIGHT AND LONGLASTING, EVEN IN CHALLENGING ENVIRONMENTS
STREAMLINED USER EXPERIENCE Crafted with user convenience in focus, R2 offers a simplified experience. Navigate through a selection of features tailored to streamline your hectic day. Its user-friendly programming and familiar design empower your team to maintain productivity seamlessly.
Receive ongoing support to minimize interruptions:
- Clearly labeled device name, model number, and preview image on the packaging.

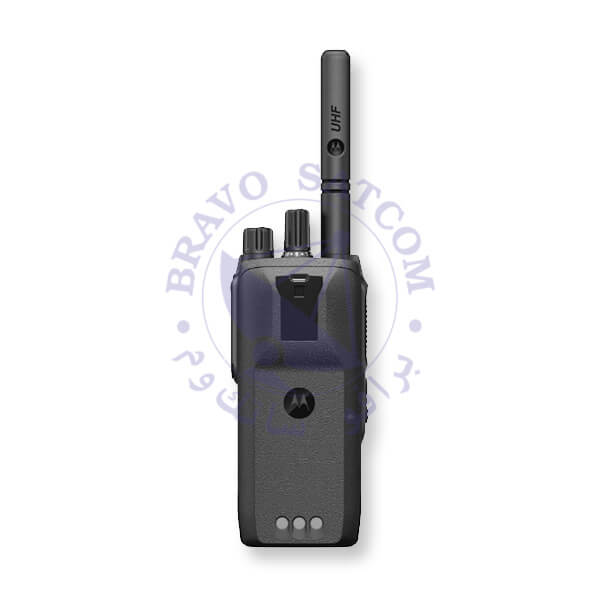

- Scan the QR code located on the device’s back to access the Get Started page and support materials.
- Benefit from standard warranty coverage and explore optional service offerings* for enhanced protection, ensuring swift issue resolution and minimal downtime. Keep your devices operational in the field for extended periods.
KEY FEATURES
- Frequency Range: UHF, VHF
- Channels: 64 channels
- Operating Modes: Analogue only, or analogue/digital models
- Advanced Features:
- Transmit Interrupt
- Dual Priority Scan
- PL / DPL / QCII / MDC1200
- Secure Enhanced Linux Operating System
- Enhanced Privacy (optional)
- Analogue Scrambling
- Radio Disable/Enable
- Lone Worker
- Remote Monitor
- Voice Announcement
- Pre-programmed Text Messaging
- Audio Capabilities:
- Loudness up to 101 phons
- SINC+ Noise Suppression (optional)
- Acoustic Feedback Suppression
- User-Selectable Audio Profiles
- Automatic Gain Control
- Received Audio Leveling (optional)
- Design and Durability:
- Sleek & Ergonomic Form Factor
- Rugged to MIL-STD 810
- IP55 (Dust and Water Ingress Protection)

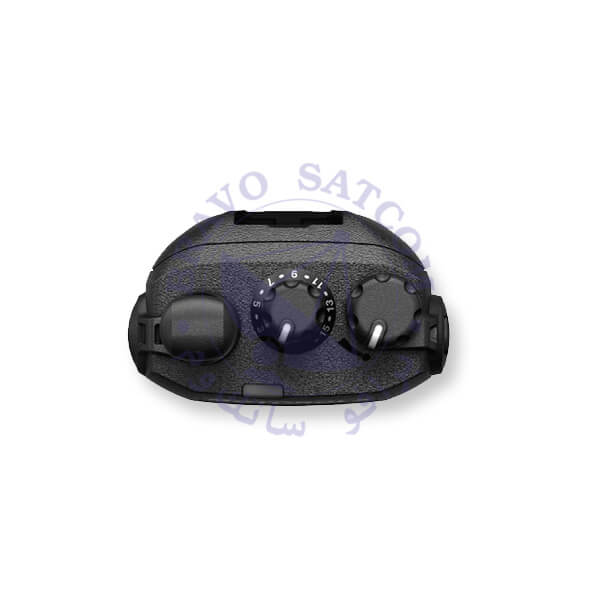

- User Controls:
- 2 Programmable Buttons
- Home Channel Reminder
- Rental Timer
GENERAL SPECIFICATIONS
| Parameter | Frequency Range |
|---|---|
| Frequency | 400-480 MHz |
| 136-174 MHz | |
| Typical RF Output | High Power: 4W |
| Low Power: 1W | |
| Channel Spacing | 12.5 / 20.0 / 25.0 kHz |
| Channel Capacity | 64 |
| Dimensions (H x W x D) | With Battery: |
| – PMNN4598 High Capacity: 125 mm x 55 mm x 37 mm | |
| – PMNN4600 Slim: 125 mm x 55 mm x 32 mm | |
| Weight with Battery | – PMNN4598 High Capacity: 286g |
| – PMNN4600 Slim: 261g | |
| Battery Life (Analogue / Digital) | – PMNN4598 High Capacity: 19.5 hours / 26.5 hours |
| – PMNN4600 Slim: 17 hours / 22.5 hours | |
| Power Supply | 7.5V (Nominal) |
TRANSMITTER SPECIFICATIONS
| Parameter | Specifications |
|---|---|
| Modulation Type | 4FSK Digital Modulation |
| Modulation Bandwidth | 12.5 kHz |
| Data Modulation Types | – 7K60F1D and 7K60FXD (Data) |
| – 7K60F1E and 7K60FXE (Voice) | |
| – Combination: 7K60F1W | |
| Digital Protocol | ETSI TS 102 361-1, -2, -3 |
| Digital Mobile Radio (DMR) Tier II | Yes |
| Spurious Emissions (TIA603E) | – < -36 dBm for < 1 GHz |
| – < -30 dBm for > 1 GHz | |
| Adjacent Channel Power | – > 60 dB @ 12.5 kHz |
| – > 70 dB @ 20/25 kHz | |
| Frequency Stability | ± 0.5 ppm |
| Modulation Limiting | – ± 2.5 kHz @ 12.5 kHz |
| – ± 4.0 kHz @ 20 kHz | |
| – ± 5.0 kHz @ 25 kHz |
RECEIVER SPECIFICATIONS
| Parameter | Specifications |
|---|---|
| Analogue Sensitivity (12dB SINAD) | 0.18 µV (typical) |
| Digital Sensitivity (5% BER) | 0.16 µV (typical) |
| Spurious Emissions (TIA603E) | < -57 dBm |
| Intermodulation (TIA603E) | > 70 dB |
| Adjacent Channel Selectivity (TIA603A) | -1T > 60 dB @ 12.5 kHz |
| -1T > 70 dB @ 20/25 kHz | |
| Adjacent Channel Selectivity (TIA603E) | -2T > 55 dB @ 12.5 kHz |
| -2T > 70 dB @ 20/25 kHz | |
| Spurious Rejection (TIA603D) | > 70 dB |
| Frequency Stability | ± 0.5 ppm |
AUDIO SPECIFICATIONS
| Parameter | Specifications |
|---|---|
| Digital Vocoder Type | AMBE+2 |
| Audio Response | TIA603E |
| Audio Output Power | Rated: 1 W, Max: 3 W |
| Audio Distortion (at Rated Power) | 3% (typical) |
| Maximum Speech Loudness | 101 phon (ISO 532B) |
| Hum and Noise | -40 dB @ 12.5 kHz / -45 dB @ 20/25 kHz |
ENVIRONMENTAL SPECIFICATIONS
| Parameter | Specifications |
|---|---|
| Operating Temperature1 | -30 °C to 60 °C |
| Storage Temperature1 | -40 °C to 85 °C |
| Thermal Shock | Per MIL-STD 810C, D, E, F, G, H |
| Humidity | Per MIL-STD 810C, D, E, F, G, H |
| Electrostatic Discharge | IEC 61000-4-2 Level 4 |
| Dust and Water Intrusion | IEC60529 IP55 |
| Salt Fog | Per MIL-STD 810C/D/E/F/G/H |
| Packaging Test | Per MIL-STD 810C/D/E/F/G/H |
