Belden H1001C1 — H1000 50 Ohm Coaxial Cable
- Part No. H1001C1: Belden 50-ohm H1000 RG-8 RF coaxial cable
- Impedance: 50 ohms nominal
- Conductor: 10 AWG Stranded Bare Copper
- Shield: 50% BC Braid Shield
- Jacket: PE
- Applications: VSAT ground station antenna feedlines, Long outdoor antenna runs (rooftop to equipment room)
Belden H1001C1 is a 50-ohm H1000 RG-8 coaxial cable built for wireless transmission applications. With precise dimensional tolerances, a 50% BC Braid Shield outer conductor, and a PE jacket, it delivers consistent impedance, controlled attenuation, and reliable RF performance across a wide frequency range — making it a preferred choice for system integrators and field engineers across the UAE and GCC.
The PE outer jacket is polyethylene — weatherproof, suitable for outdoor and direct burial use.

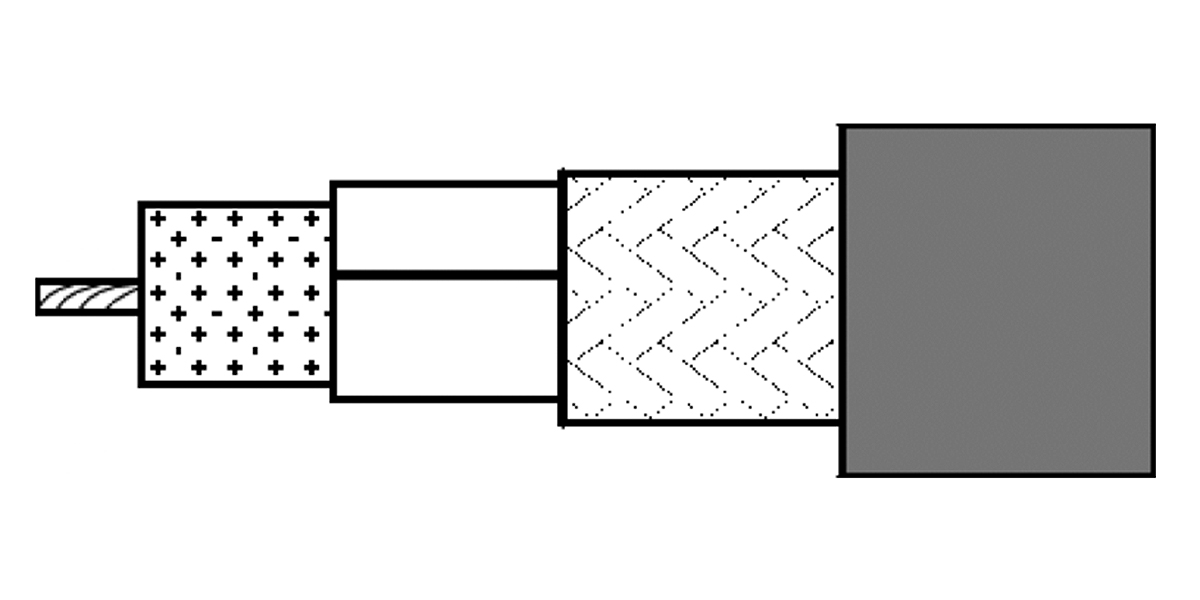

Construction Details
| Parameter | Detail |
|---|---|
| Part Number | H1001C1 |
| Impedance | 50 ohms |
| Series / Type | H1000 RG-8 |
| Conductor | 10 AWG Stranded Bare Copper |
| Shield | 50% BC Braid Shield |
| Jacket | Jacket |
Typical Applications
- VSAT ground station antenna feedlines
- Long outdoor antenna runs (rooftop to equipment room)
- Cellular base station main feeder cables
- High-power broadcast transmitter outputs
- RF-400 series: low-loss replacement for standard RG-8
Available in custom cut lengths. Contact Bravo Satcom at sales@bravosatcom.com or +971 55 541 5892 for pricing and stock availability.
