Belden MRG1781 — RG-178 50 Ohm Coaxial Cable
- Part No. MRG1781: Belden 50-ohm RG-178 RF coaxial cable
- Impedance: 50 ohms nominal
- Conductor: 30 AWG Solid Silver Copper-Covered Steel
- Shield: 95% TC Braid Shield
- Jacket: PVC
- Applications: Portable equipment and test instruments, Short RF patch cables and pigtails
Belden MRG1781 is a 50-ohm RG-178 coaxial cable built for wireless transmission. With a 95% TC Braid Shield outer conductor and PVC jacket (PVC — general indoor and protected installations), it delivers consistent impedance and controlled attenuation across a wide frequency range.

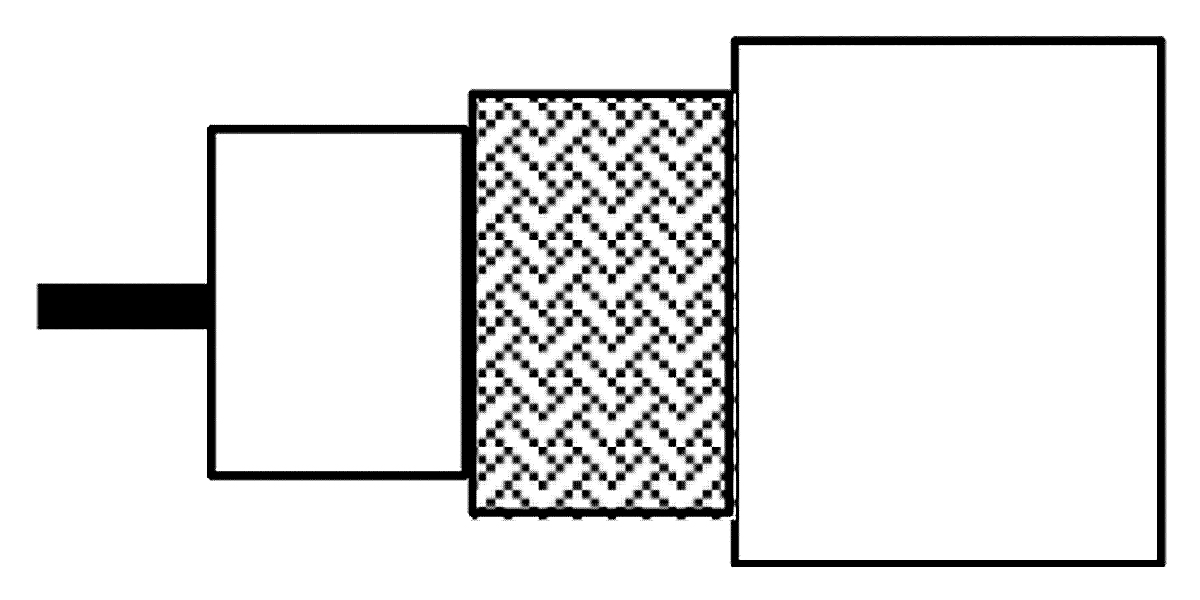

Construction
| Parameter | Detail |
|---|---|
| Part Number | MRG1781 |
| Impedance | 50 ohms |
| Type | RG-178 |
| Conductor | 30 AWG Solid Silver Copper-Covered Steel |
| Shield | 95% TC Braid Shield |
| Jacket | Jacket |
Applications
- Portable equipment and test instruments
- Short RF patch cables and pigtails
- Miniaturised RF assemblies
- Telecommunications equipment interconnects
Available in custom cut lengths. Contact Bravo Satcom at sales@bravosatcom.com or +971 55 541 5892 for pricing.
