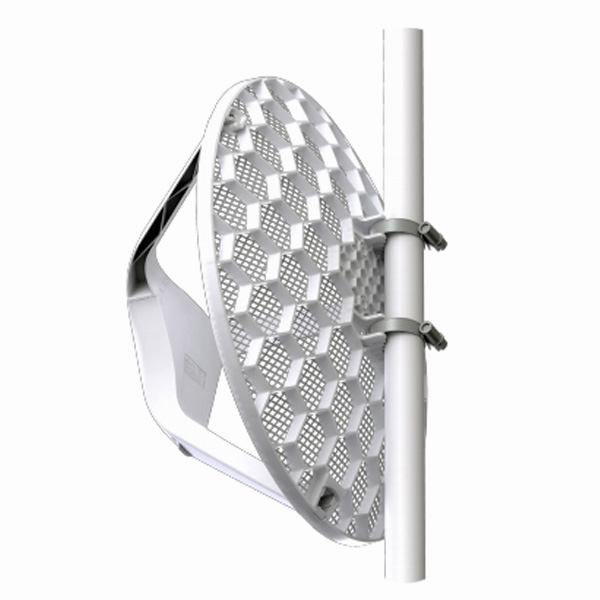

MikroTik Light Head Grid (LHG 5)
- Compact dimensions of Ø 391 x 222 mm
- Disassembled for compact shipping
- Lightweight unit weight of 560 g
The LHG 5 is a compact and lightweight 5 GHz 802.11 a/n wireless device, developed by Mikrotik, that boasts an integrated dual-polarization 24.5 dBi grid antenna. This revolutionary product is designed to excel in point-to-point links or serve as a customer premises equipment (CPE) at longer distances, supporting the Nv2 TDMA protocol.
Key Features and Specifications
The LHG 5 is a feature-rich wireless device that offers a range of impressive specifications, making it a compelling choice for various networking applications. Let’s dive into the details:
Hardware Specifications
| Specification | Value |
|---|---|
| CPU Nominal Frequency | 600 MHz |
| RAM | 64 MB |
| Storage | 16 MB Flash |
| Ethernet Ports | 1 x 10/100 |
| Wireless Technology | Built-in 5 GHz 802.11a/n, dual-chain |
| Wireless Chip Model | AR9344 |
| Operating Frequency | International: 5150 – 5875 MHz<br>USA: 5170 – 5250 MHz, 5725 – 5835 MHz |
| Antenna Gain | 24.5 ± 0.5 dBi |
| Antenna Beam Width | 7° |
| Cross Polar | 15 dBi |
| Port to Port Isolation | 20 dB |
| Front to Back Ratio | 25 dB |
| Return Loss | 10 dB |
| VSWR | 1.925:1 |
| Power over Ethernet (PoE) | Yes (passive PoE) |
| Supported Input Voltage | 11 V – 30 V |
| Wind Loading | 186N @ 205 km/h |
| Operating Temperature | -40 to 70° C |
| Operating Humidity | 5 to 95% non-condensing |
| Shock and Vibration | ETSI300-019-1.4 |
| ETSI Specification | EN 302 326 DN2 |
| Dimensions | Ø 391 x 222 mm |
| Weight | Unit: 560 g, Package: 1.98 kg |
| Max Power Consumption | 6 W |
Wireless Specifications
The LHG 5 offers impressive wireless performance, as shown in the following table:
| Wireless Rate | Tx (dBm) | Rx (dBm) |
|---|---|---|
| 6 Mbit/s | 25 | -96 |
| 54 Mbit/s | 20 | -80 |
| MCS0 | 25 | -96 |
| MCS7 | 19 | -75 |
Antenna Specifications
The LHG 5’s integrated dual-polarization 24.5 dBi grid antenna is a key feature that sets it apart. The antenna’s performance is showcased in the following graphs:
![Antenna Gain over Frequency][]
The graph demonstrates the antenna’s maximum gain over the operating frequency range, both for horizontal and vertical polarization.![Realized Gain over Frequency][]
This graph illustrates the realized gain of the antenna, showcasing its exceptional performance across the frequency spectrum.
Application Scenarios
The LHG 5’s versatility and performance make it a suitable choice for a variety of networking applications. Some of the key use cases include:
- Point-to-Point Links: The LHG 5’s high-gain antenna and long-range capabilities make it an ideal solution for establishing reliable point-to-point wireless connections, enabling the delivery of high-speed internet or private network connectivity over longer distances.
- Customer Premises Equipment (CPE): The LHG 5 can be deployed as a CPE device, providing end-users with a powerful and reliable wireless connection for their homes or businesses, particularly in areas with limited wired infrastructure.
- Wireless Backhaul: The LHG 5’s high-performance wireless capabilities make it a suitable choice for creating wireless backhaul links, allowing the efficient and cost-effective expansion of network coverage without the need for extensive wired infrastructure.
- Wireless Bridging: The LHG 5 can be used to bridge wireless networks, enabling seamless connectivity between different network segments or locations, particularly in scenarios where physical cabling is challenging or impractical.
Ease of Installation and Deployment
The LHG 5 is designed with user-friendly installation and deployment in mind. It comes disassembled for compact shipping, but the assembly process is straightforward and simple. The device also includes a convenient grounding attachment point, ensuring proper and secure installation.
Additionally, the package includes a small adapter that allows for tilting the antenna by five degrees from the original position, providing flexibility in optimizing the antenna’s orientation and coverage.
Conclusion
The LHG 5 from Mikrotik is a highly versatile and powerful wireless device that combines a compact design, high-gain antenna, and impressive performance specifications. Its suitability for a wide range of networking applications, along with its ease of installation and deployment, make it a compelling choice for professionals and enthusiasts alike.
Whether you’re looking to establish reliable point-to-point links, deploy a high-performance CPE solution, or create wireless backhaul and bridging networks, the LHG 5 is a reliable and feature-rich product that can help you achieve your connectivity goals.
