NJR2845AE Series – Ku-band PLL LNB (External Reference)
A single-band Ku-band LNB covering 10.95 to 11.7 GHz with its PLL oscillator locked to an external 10 MHz reference.

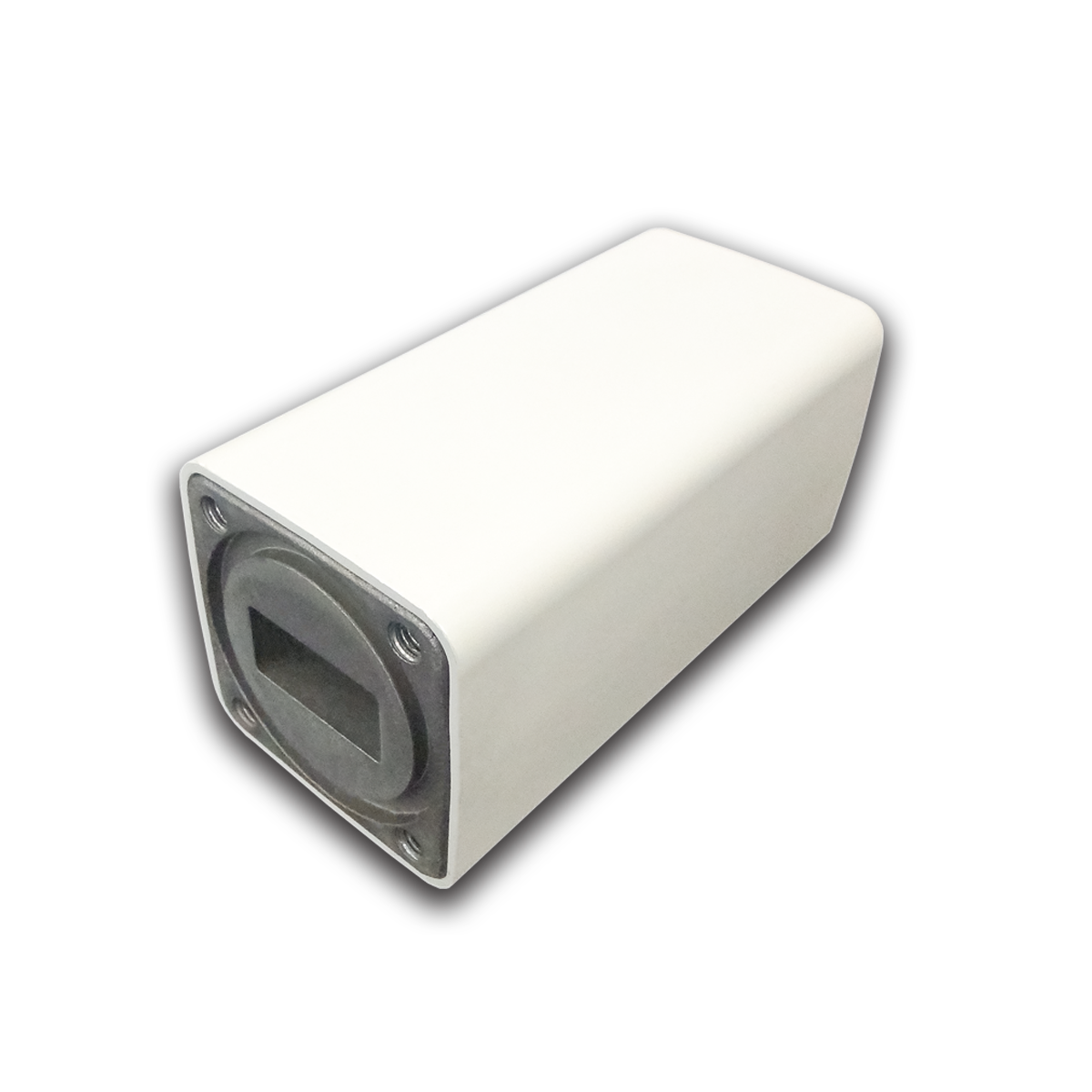

The NJR2845AE series is a low-noise block downconverter for the 10.95 to 11.7 GHz Ku-band segment, using a PLL local oscillator (10.0 GHz) synchronized to an externally supplied 10 MHz reference signal. It delivers an IF output of 950 to 1,700 MHz with a typical noise figure of 0.8 dB (1.0 dB max). The unit is compact and lightweight, weighing 210 g in F-type or 240 g in N-type, and is RoHS compliant.
| Parameter | Specification |
|---|---|
| RF Input Interface | Waveguide, WR75 (with Groove) |
| IF Output Interface | Coax. Connector, N-type Female (50 Ω) / Coax. Connector, F-type Female (75 Ω) |
| RF Frequency | 10.95 to 11.7 GHz |
| IF Frequency | 950 to 1,700 MHz |
| LO Frequency | 10.0 GHz |
| Linear Gain | 57 dB typ., 52 dB min. @ +25C |
| Noise Figure(NF) | 0.8 dB typ., 1.0 dB max. @ +25C |
| Input Power Voltage Requirement | +24 VDC (+10 to +24 VDC) |
| Current Consumption | 200 mA max. |
| Operating Temperature Range | -40 to +60C |
| Waterproof / Dustproof (IP-code) | IP67 |
| Weight | F-type: 210 g / N-type: 240 g |
| Dimensions | (L) 82.2 x (W) 40 x (H) 40 mm (w/o Interfaces & Screws) |
