Parameter | Specifications |
---|---|
RF Output Interface | Waveguide, WR75 (with Groove) |
IF Input Interface | – Coaxial Connector, N-type Female (50 Ω) |
– Coaxial Connector, F-type Female (75 Ω) | |
Frequency Ranges | – RF Frequency: 14.0 to 14.5 GHz |
– IF Frequency: 950 to 1,450 MHz | |
– LO Frequency: 13.05 GHz | |
Power and Performance | – P1dB Output Power: +34 dBm min. over temperature |
(@ 1dB G.C.P.) | |
– ACPR: -26 dBc typ. @ Pout = +34 dBm | |
– Linear Gain: 58 dB typ., 51 dB min. | |
Power Supply | – Input Power Voltage Requirement: +24 VDC (+12 |
to +30 VDC) | |
– Power Consumption @ P1dB: 18 W typ., 23 W max. | |
Environmental Conditions | – Operating Temperature Range: -40 to +55 ℃ |
– Waterproof / Dustproof (IP-code): IP67 | |
Physical Characteristics | – Weight: 350 g |
– Dimensions (LxWxH): 91.55 x 68 x 42.5 mm | |
(w/o Interfaces & Screws) |

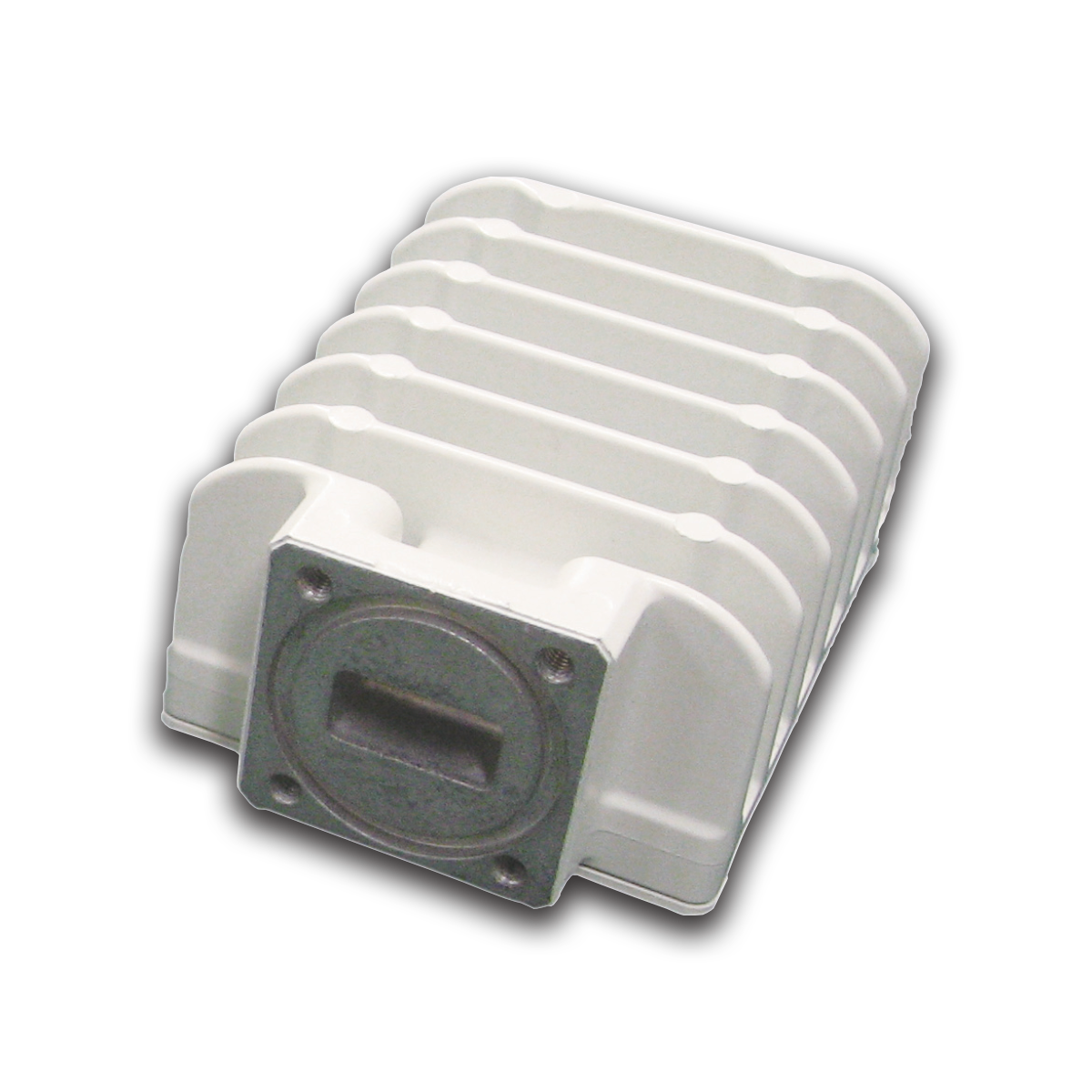

Standard Ku-band 3W BUC NJT8302 , LO Freqency: 13.05 GHz, IF Freqency: 950 to 1,450 MHz
In stock
SKU: NJT8302
Categories: BUC, Ku Band, NJRC / Nisshinbo Micro Devices Inc., Standard, VSAT
Tags: 3W BUC, Block Up Converter, NJR 3W BUC, NJRC, Universal BUC
NJT8302N | N Type – 50Ω |
---|---|
NJT8302UF | F Type – 75Ω |
