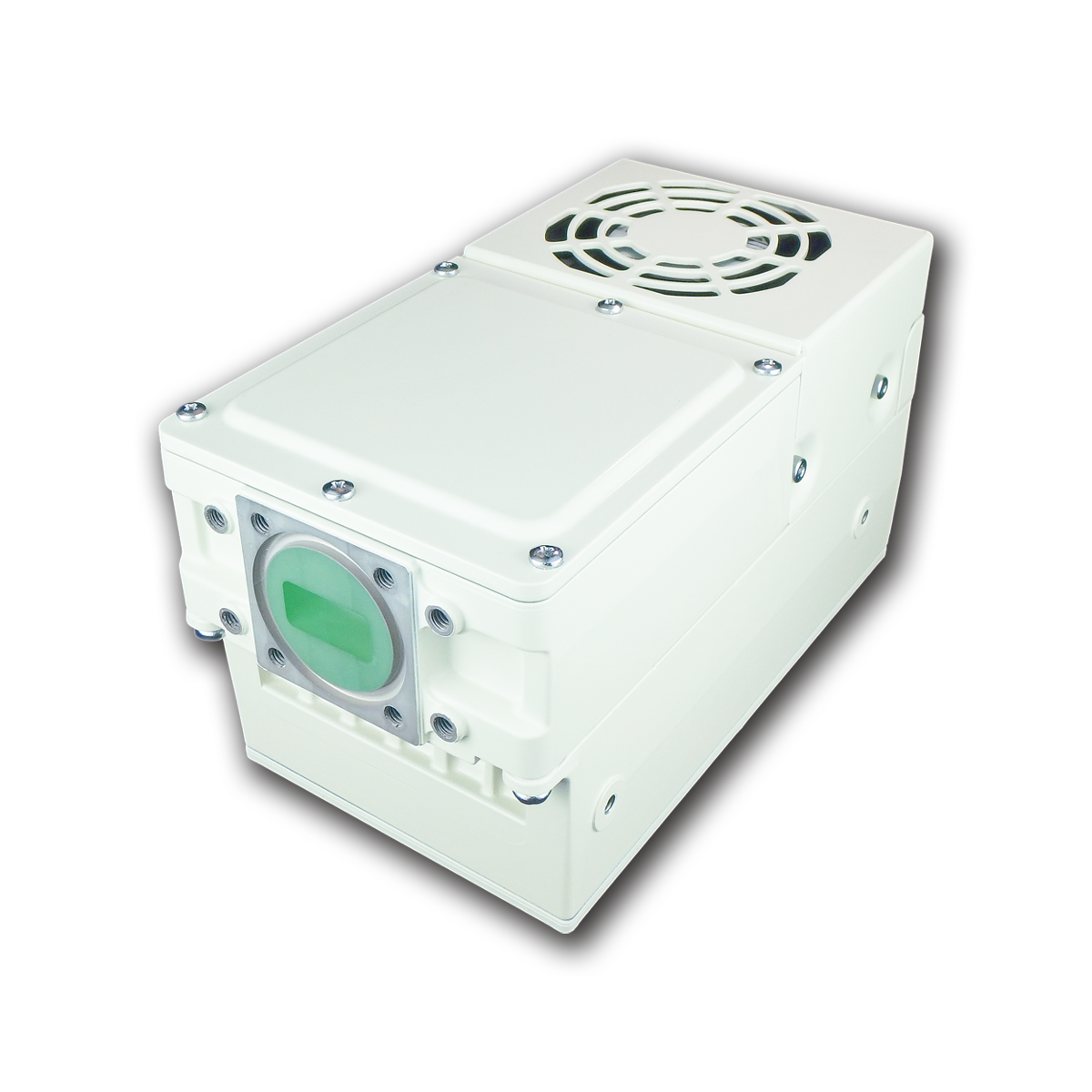

NJT8334U Series – Universal Ku-band GaN 8W BUC
An ultra-compact 8W GaN Ku-band block up-converter with an internal linearizer and Ethernet-based monitor-and-control, covering the universal 13.75-14.5 GHz band.
The NJT8334U is a GaN HEMT block up-converter with a built-in linearizer for the universal Ku-band (13.75 to 14.5 GHz), producing up to 8W (+39 dBm) of linear output power. It processes a 950-1,700 MHz IF signal against a 12.8 GHz LO, consumes about 70W typical at rated output from a +18 to +54 VDC supply. The unit is housed in a small, lightweight (1.8 kg) IP67-rated enclosure rated for operation up to +75 ℃, and this NMT variant supports Ethernet (HTTP/SNMP) and parallel I/O monitor-and-control; RS-485 and optional RS-232 variants are also available in the series. It includes an LED indicator and is RoHS compliant.
| Parameter | Specification |
|---|---|
| RF Output Interface | Waveguide, WR75 (with Groove) |
| IF Input Interface | Coax. Connector, N-type Female (50 Ω) / Coax. Connector, F-type Female (75 Ω) |
| RF Frequency | 13.75 to 14.5 GHz |
| IF Frequency | 950 to 1,700 MHz |
| LO Frequency | 12.8 GHz |
| P1dB Output Power | +39 dBm min. over temperature @ Rated Output Power |
| ACPR | -24 dBc max. @ +39 dBm Output Power |
| Linear Gain | 59 dB @ Rated Output Power |
| Input Power Voltage Requirement | +24 / +48 VDC (+18 to +54 VDC) |
| Current Consumption | 70 W typ., 75 W max. @ Rated Output Power |
| Operating Temperature Range | Operating Guarantee Range: -40 to +75 ℃ / Performance Guarantee Temperature Range: -40 to +60 ℃ |
| Waterproof / Dustproof (IP-code) | IP67 |
| Weight | 1.8 kg |
| Dimensions | (L) 161 x (W) 83.8 x (H) 86.4 mm (w/o Interfaces & Screws) |
| M&C | RS-485 / RS-232 (Option); Ethernet (HTTP / SNMP); Parallel I/O |
