NJT8376U Series – Universal Ku-band 6W BUC (Compact Model)
An ultra-lightweight, compact 6W Ku-band block up-converter for the universal 13.75-14.5 GHz band, designed for space- and weight-constrained installations.

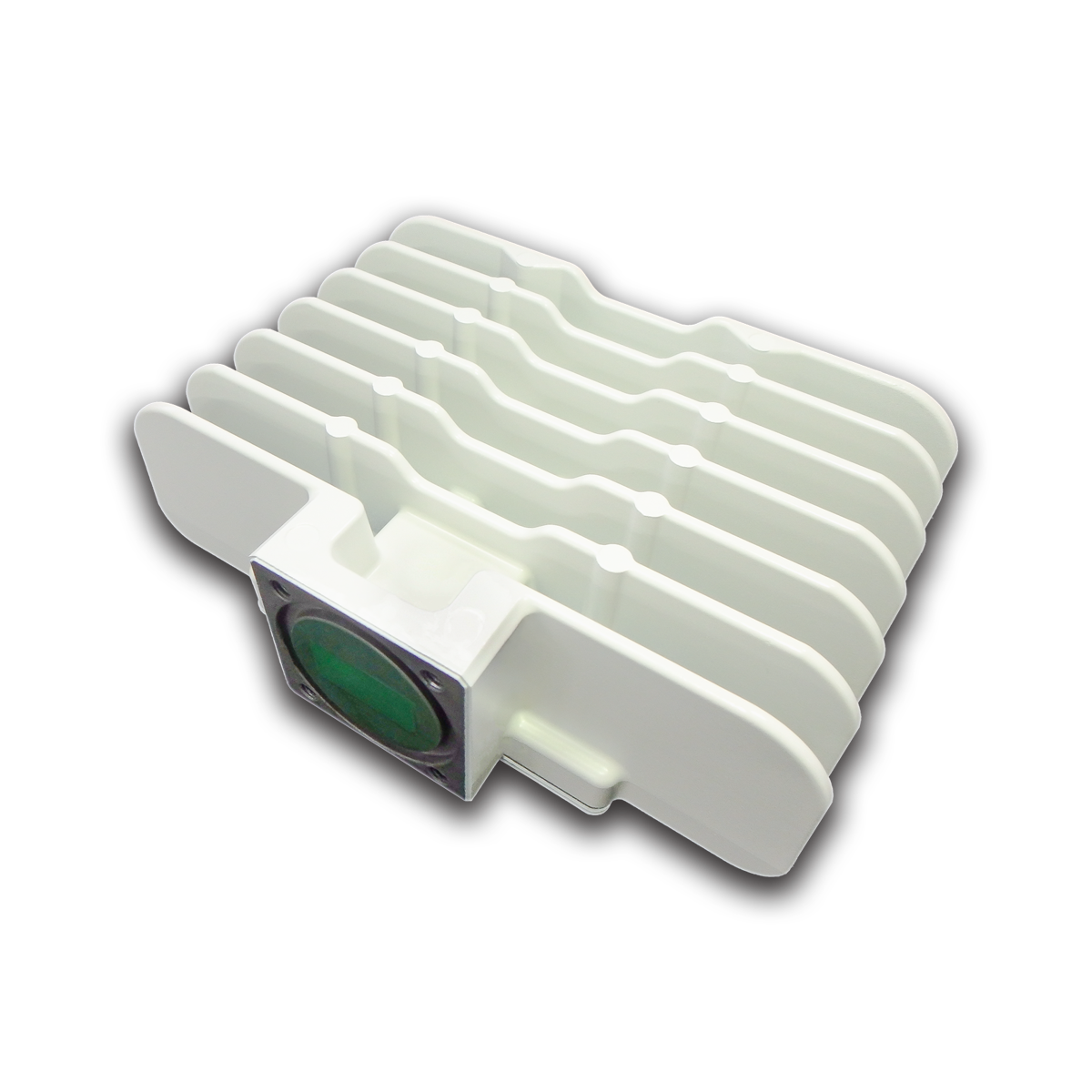

The NJT8376U is a compact, ultra-light (540 g) block up-converter covering the universal Ku-band from 13.75 to 14.5 GHz, delivering up to 6W (+37.8 dBm P1dB) from a 950-1,700 MHz IF input against a 12.8 GHz LO. It is built into a small weatherproof, IP67-rated enclosure, runs on +24 VDC (12 to 30 VDC range), and draws around 34W typical at P1dB. Typical ACPR is -26 dBc at +37.0 dBm output, and the unit operates across -40 to +60C. It is RoHS compliant, though this compact model does not include a monitor-and-control interface or LED indicator found on some other series members.
| Parameter | Specification |
|---|---|
| RF Output Interface | Waveguide, WR75 (with Groove) |
| IF Input Interface | Coax. Connector, N-type Female (50 Ω) / Coax. Connector, F-type Female (75 Ω) |
| RF Frequency | 13.75 to 14.5 GHz |
| IF Frequency | 950 to 1,700 MHz |
| LO Frequency | 12.8 GHz |
| P1dB Output Power | +37.8 dBm min. over temperature (@ 1dB G.C.P.) |
| ACPR | -26 dBc typ. @ Pout = +37.0 dBm |
| Linear Gain | 62 dB nom., 56 dB min. |
| Input Power Voltage Requirement | +24 VDC (+12 to +30 VDC) |
| Power Consumption @ P1dB | 34 W typ., 38 W max. |
| Operating Temperature Range | -40 to +60C |
| Waterproof / Dustproof (IP-code) | IP67 |
| Weight | 540 g |
| Dimensions | (L) 98 x (W) 128 x (H) 42.5 mm (w/o Interfaces & Screws) |
