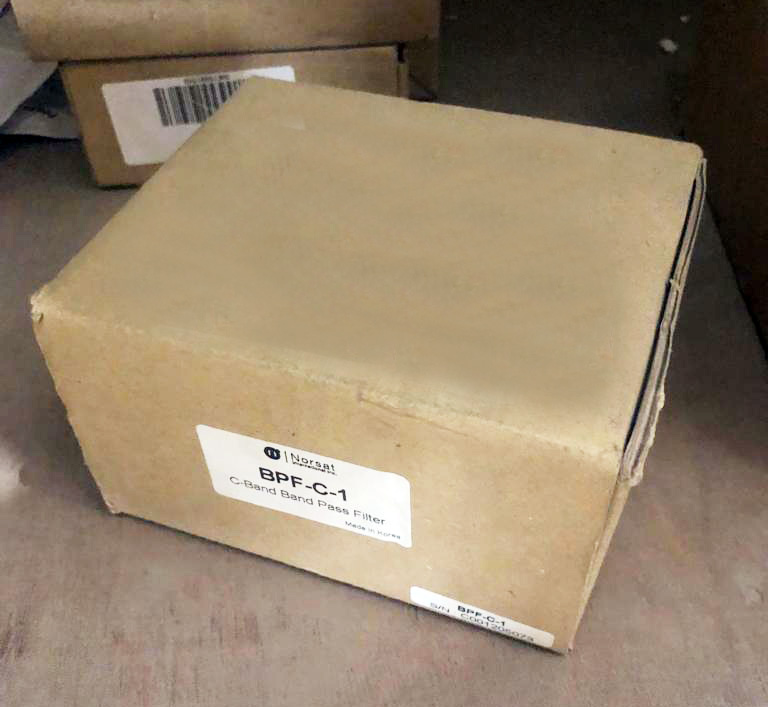

Norsat BPF C 1
Specification | Value |
---|---|
Frequency Range | 3.70 to 4.20 GHz |
VSWR | 1.4 : 1 max. |
Insertion Loss in Band | 0.5 dB max. |
Rejection | 25 dB min at 3.650 GHz and 4.250 GHz <br> 60 dB min at 3.550 GHz and 4.350 GHz <br> 70 dB min at 3.500 GHz and 4.400 GHz |
Group Delay Variation | within +/-0.5MHz 0.6 nsec |
Waveguide Flange | CPR-229G (input), CPR-229F (output) |
Dimensions (L x W x H) | 120 mm x 100 mm x 70 mm |
Weight | < 650 g |
