NJT8304 Series – Standard Ku-band 4W BUC
A small, lightweight Ku-band block up-converter delivering up to 4 W of P1dB output power for Standard Ku-band satellite terminals.

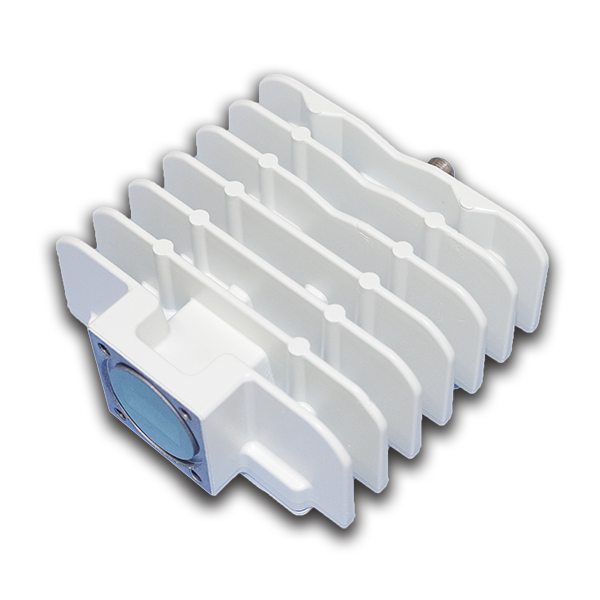

The NJT8304 is a Standard Ku-band (14.0-14.5 GHz) block up-converter in a compact weatherized enclosure, providing up to 4 W (+36 dBm) of P1dB output power. It operates on a 950-1,450 MHz IF with a 13.05 GHz LO, delivering a minimum P1dB of +36 dBm over temperature and -26 dBc ACPR at +35.5 dBm output while drawing 28 W. Weighing just 500 g, the unit is RoHS compliant.
| Parameter | Specification |
|---|---|
| RF Output Interface | Waveguide, WR75 (with Groove) |
| IF Input Interface | Coax. Connector, N-type Female (50 Ω); Coax. Connector, F-type Female (75 Ω) |
| RF Frequency | 14.0 to 14.5 GHz |
| IF Frequency | 950 to 1,450 MHz |
| LO Frequency | 13.05 GHz |
| P1dB Output Power | +36 dBm min. over temperature (@ 1dB G.C.P.) |
| ACPR | -26 dBc typ. @ Pout = +35.5 dBm |
| Linear Gain | 62 dB nom., 56 dB min. |
| Input Power Voltage Requirement | +24 VDC (+12 to +30 VDC) |
| Power Consumption @ P1dB | 28 W typ., 32 W max. |
| Operating Temperature Range | -40 to +60C |
| Waterproof / Dustproof (IP-code) | IP67 |
| Weight | 500 g |
| Dimensions | (L) 98 x (W) 98 x (H) 42.5 mm (w/o Interfaces & Screws) |
