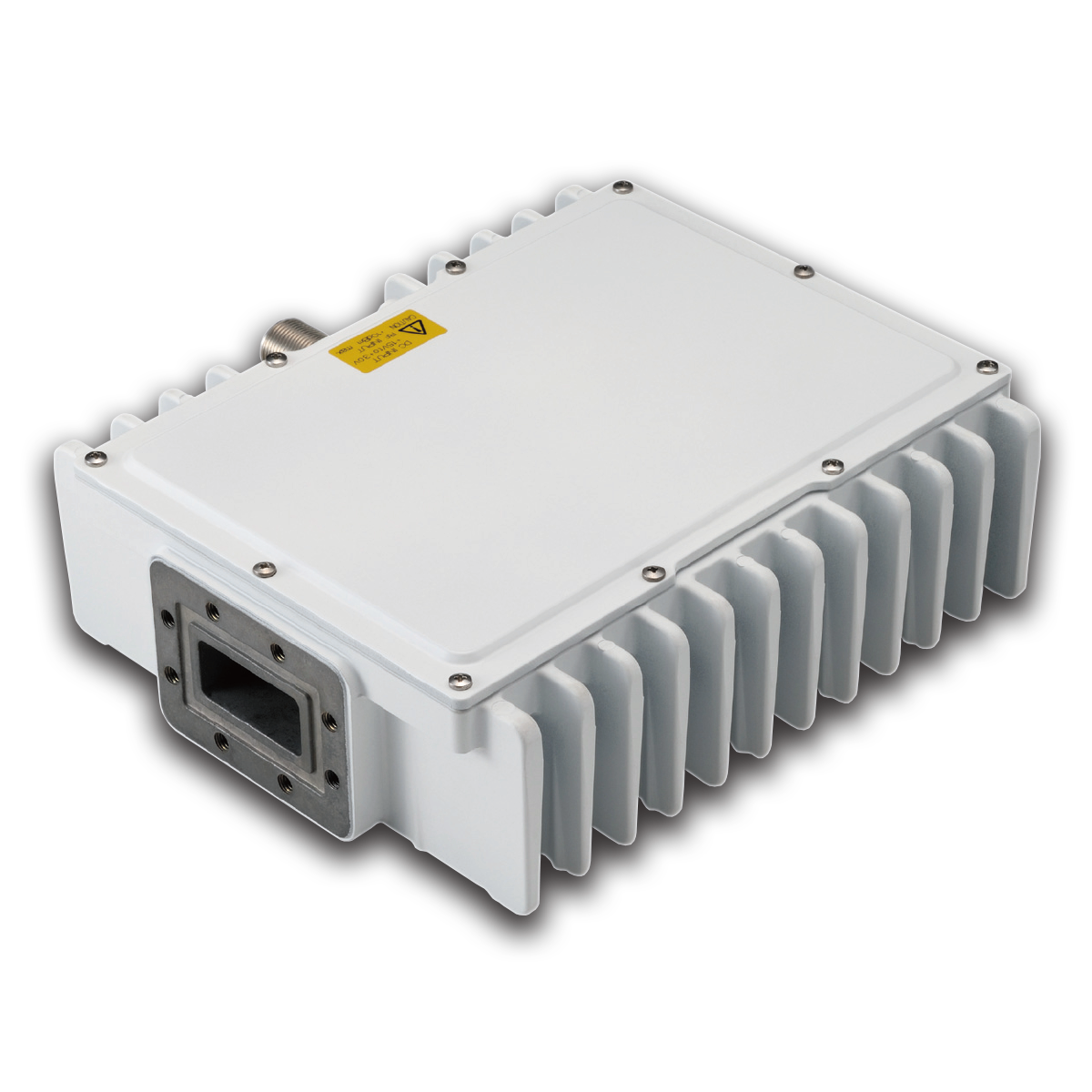

NJT5670 Series — Insat C-band 5W BUC
A fanless, weatherized block up-converter for the Insat C-band (6.725–7.025 GHz) that delivers up to 5W (+37 dBm P1dB) output.
The NJT5670 series is a block up-converter for Insat C-band operation (6.725 to 7.025 GHz), delivering RF output power up to 5W (+37 dBm P1dB) from a fanless, weatherized enclosure. It covers an IF frequency range of 965 to 1,265 MHz with a 5.76 GHz LO frequency, draws up to about 48-50W at maximum, and weighs approximately 1.7 kg, giving it a compact and lightweight footprint. It includes a built-in LED status indicator and is RoHS compliant.
| Parameter | Specification |
|---|---|
| RF Output Interface | Waveguide, CPR137 (with Groove) |
| IF Input Interface | Coax. Connector, N-type Female (50 Ω) Coax. Connector, F-type Female (75 Ω) |
| RF Frequency | 6.725 to 7.025 GHz |
| IF Frequency | 965 to 1,265 MHz |
| LO Frequency | 5.76 GHz |
| P1dB Output Power | +37 dBm min. over temperature (@ 1dB G.C.P.) |
| Linear Gain | 61 dB nom. |
| Input Power Voltage Requirement | +24 VDC (+15 to +30 VDC) |
| Power Consumption | 50 W max. (@ P1dB) |
| Operating Temperature Range | -40 to +55 ℃ |
| Waterproof / Dustproof (IP-code) | IP67 |
| Weight | 1.7 kg |
| Dimensions | (L) 190.6 x (W) 160 x (H) 59 mm (w/o Interfaces & Screws) |
