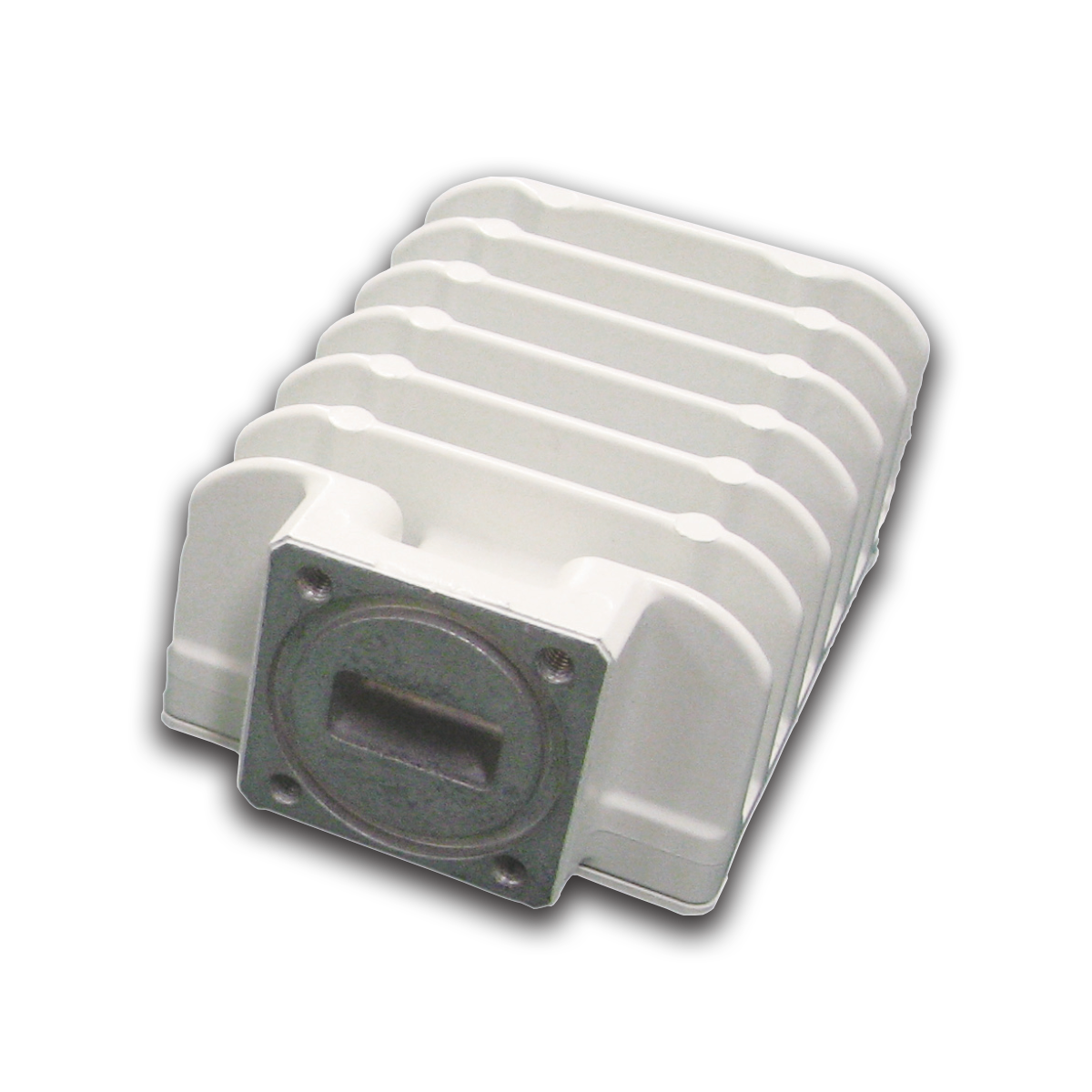

NJT8302U Series – Universal Ku-band 3W BUC
A very compact 3W Ku-band block up-converter for the universal 13.75-14.5 GHz band, designed for small, low-power VSAT terminals.
The NJT8302U is a block up-converter for the universal Ku-band (13.75 to 14.5 GHz), producing up to 3W (+34 dBm P1dB) from a 950-1,700 MHz IF input against a 12.8 GHz LO. It is housed in a small, weatherized, IP67-rated enclosure weighing only 350 g, runs on +24 VDC (12 to 30 VDC range), and draws about 18W typical at P1dB with a typical ACPR of -26 dBc at +34 dBm output. Operating range is -40 to +55C, and the unit is RoHS compliant.
| Parameter | Specification |
|---|---|
| RF Output Interface | Waveguide, WR75 (with Groove) |
| IF Input Interface | Coax. Connector, N-type Female (50 Ω) / Coax. Connector, F-type Female (75 Ω) |
| RF Frequency | 13.75 to 14.5 GHz |
| IF Frequency | 950 to 1,700 MHz |
| LO Frequency | 12.8 GHz |
| P1dB Output Power | +34 dBm min. over temperature (@ 1dB G.C.P.) |
| ACPR | -26 dBc typ. @ Pout = +34 dBm |
| Linear Gain | 58 dB typ., 51 dB min. |
| Input Power Voltage Requirement | +24 VDC (+12 to +30 VDC) |
| Power Consumption @ P1dB | 18 W typ., 23 W max. |
| Operating Temperature Range | -40 to +55C |
| Waterproof / Dustproof (IP-code) | IP67 |
| Weight | 350 g |
| Dimensions | (L) 91.55 x (W) 68 x (H) 42.5 mm (w/o Interfaces & Screws) |
