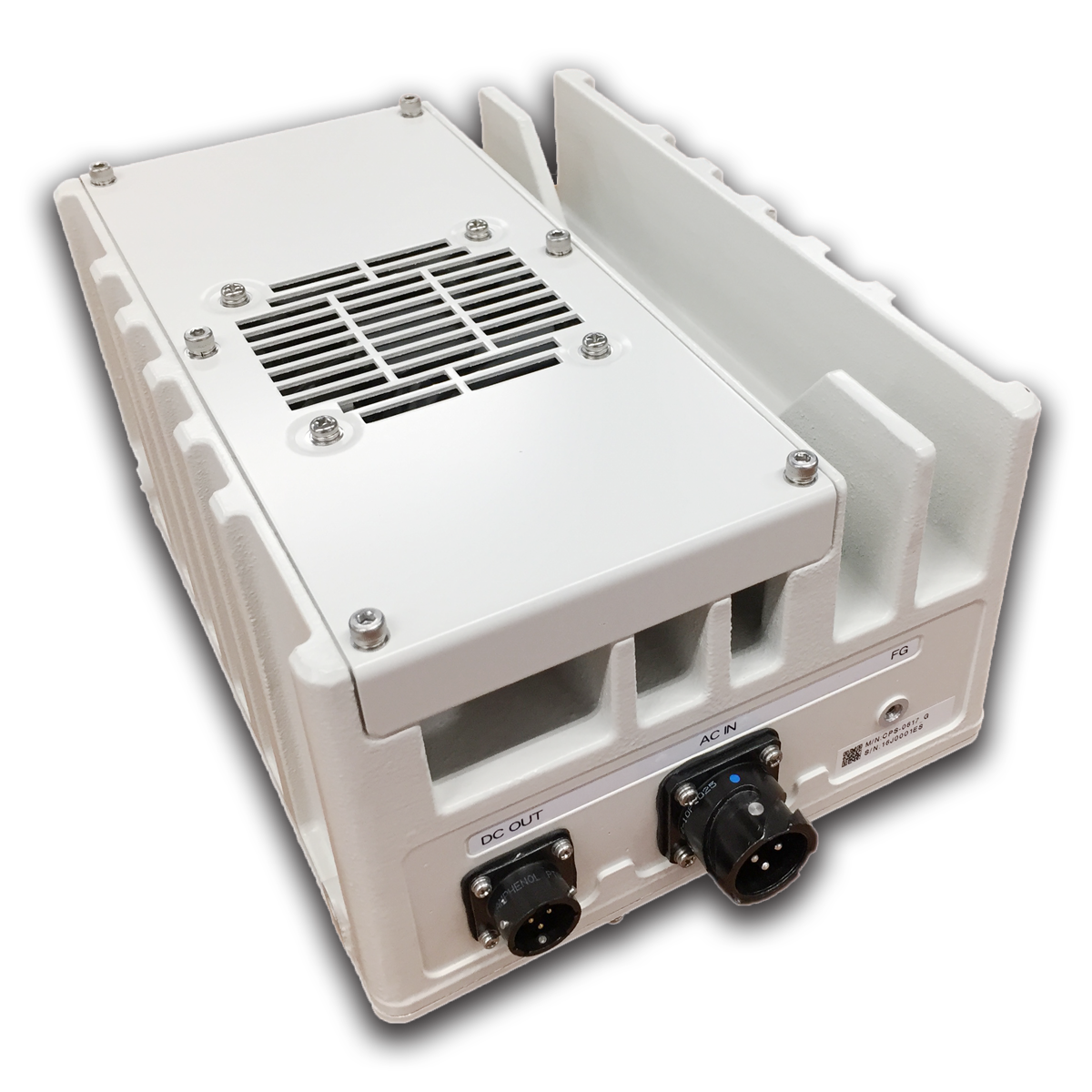

NJZ1295 500W Outdoor AC/DC Power Supply Unit
An outdoor 500 W AC/DC power supply unit that delivers stable +51 VDC power to compatible BUCs.
The NJZ1295 is an outdoor-rated power supply unit that converts 100-240 VAC input into a stable +51 VDC output at up to 500 W, feeding compatible block upconverters (such as the NJT8371 series) through a waterproof circular connector. It includes power factor correction and forced-air cooling, is rated IP67 for dust and water resistance, weighs about 5 kg, and is RoHS compliant.
| Parameter | Specification |
|---|---|
| Input AC Power Interface | GTS030-16-10P(025) / Amphenol |
| Output DC Power Interface | PT02E-12-3P(025) / Amphenol |
| Input AC Power Voltage Range | Specified Value: 100 to 240 VAC; Maximum Rated Value: 90 to 264 VAC |
| Input AC Power Frequency | 50 / 60 Hz |
| Input AC Power Current | 6 A max. |
| Output DC Power Voltage | +51 V ± 3 V |
| Output DC Power Capacity | 500 W max. |
| Operating Temperature Range | -40 to +60 ℃ |
| Waterproof / Dustproof (IP-code) | IP67 |
| Weight | 5 kg |
| Dimensions | (L) 250 x (W) 191 x (H) 118.1 mm (w/o Interfaces & Screws) |
