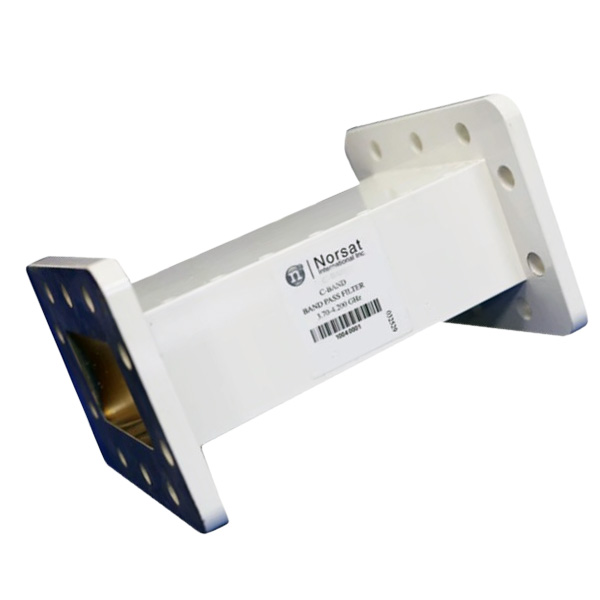

Name: Norsat C-Band Band Pass Filter, 3.80 to 4.20 GHz, BPF-C-4
SKU: BPF-C-4
Availability: InStock

Norsat C-Band Band Pass Filter, 3.80 to 4.20 GHz, BPF-C-4

1,850.00 AED

SKU: BPF-C-4 Categories: Brand, C-Band, LNB, Norsat

SPECIFICATIONS (BPF-C-4)	Details
Frequency Range	3.80 to 4.20 GHz
VSWR	1.4 : 1 max.
Insertion Loss in Band	0.5 dB max.
Rejection	25 dB min at 3.750 & 4.250 GHz 60 dB min at 3.650 & 4.350 GHz 70 dB min at 3.600 & 4.400 GHz
Group Delay Variation	±0.5 MHz, 0.6 nsec
Waveguide Flange	CPR-229G (input), CPR-229F (output)
Dimensions (L × W × H)	120 mm × 100 mm × 70 mm
Weight	< 650 g
