Parameter | Specifications |
---|---|

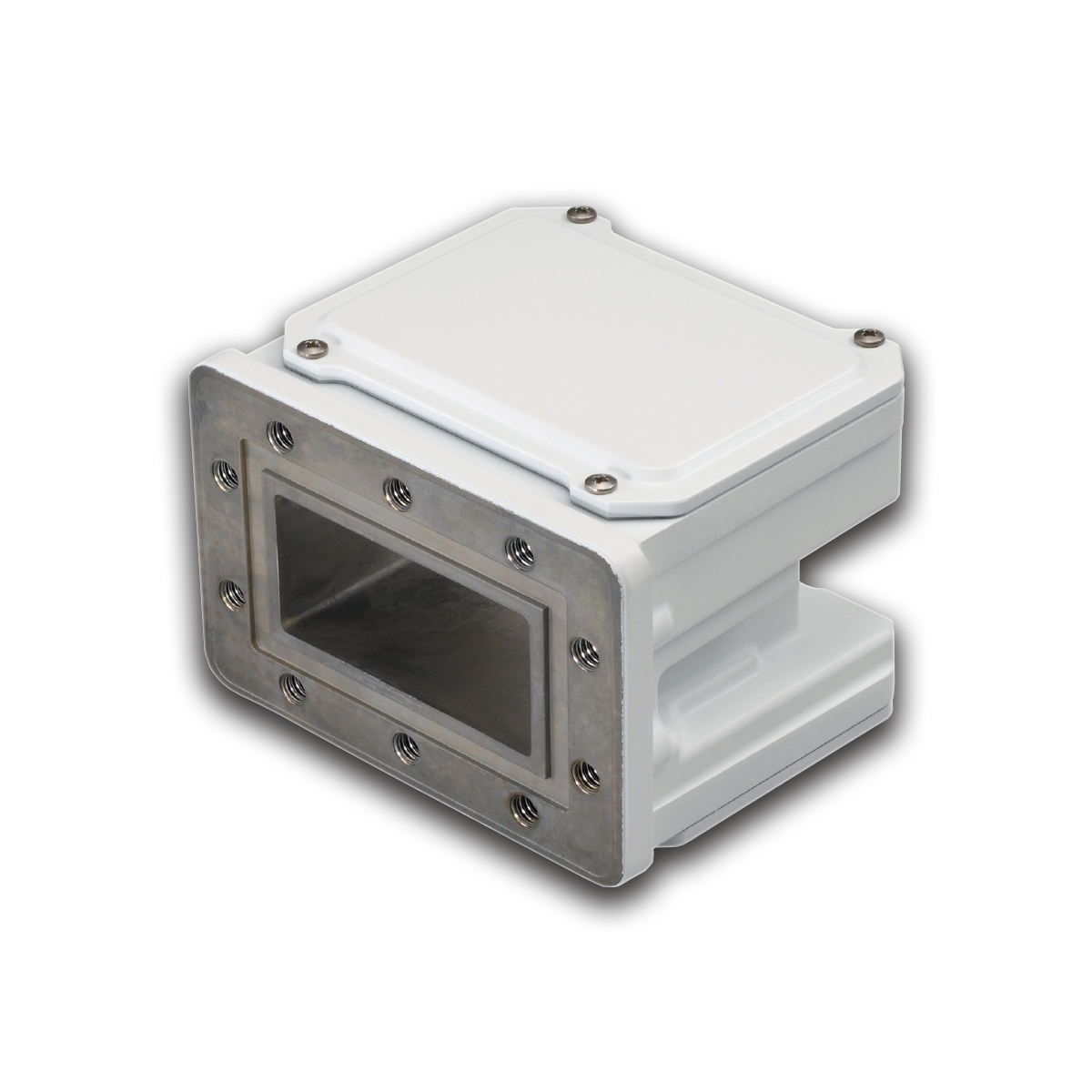

RF Input Interface | – Waveguide, CPR229 (with Groove) |
IF Output Interface | – Coaxial Connector, N-type Female (50 Ω) |
RF Frequency | – RF Frequency: 3.4 to 4.2 GHz |
Linear Gain | – Linear Gain: 55 dB typ., 48 dB min. @ +25 ℃ |
Noise Temperature(NT) | – Noise Temperature(NT): 15 K typ., 30 K max. @ +25 ℃ |
Input Power Voltage Requirement | – +24 VDC (+12 to +28 VDC) |
Current Consumption | – Current Consumption: 125 mA typ., 160 mA max. |
Operating Temperature Range | – Operating Temperature Range: -40 to +60 ℃ |
Waterproof / Dustproof (IP-code) | – Waterproof / Dustproof (IP-code): IP67 |
Weight | – Weight: 800 g |
Dimensions | – Dimensions (LxWxH): 80.8 x 99.6 x 76 mm |
(w/o Interfaces & Screws) |
Frequency Organization
Parameter | Specifications |
---|---|
RF Frequency | 3.4 to 4.2 GHz |
Low Noise Performance
Parameter | Specifications |
---|---|
Noise Temperature | 15 K typ. |
Small Size & Light Weight
Parameter | Specifications |
---|---|
Weight | 800 g |
Others
- RoHS Compliance
