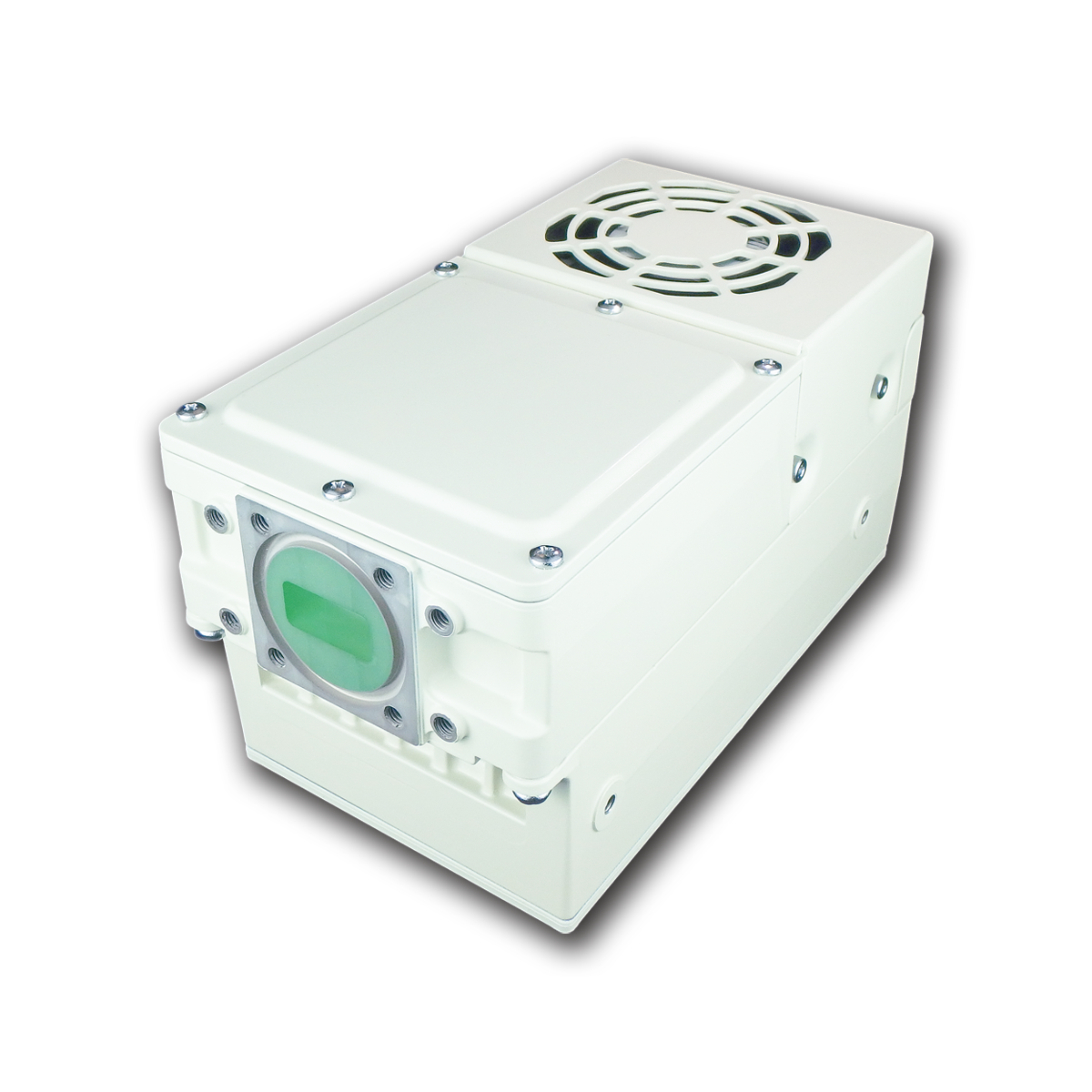

NJT8336U Series – Universal Ku-band GaN 16W BUC
An ultra-compact 16W GaN Ku-band block up-converter with an internal linearizer and Ethernet-based monitor-and-control for the universal 13.75-14.5 GHz band.
The NJT8336U is a GaN HEMT block up-converter with a built-in linearizer, covering the universal Ku-band from 13.75 to 14.5 GHz and delivering up to 16W (+42 dBm) of linear output power (typically +42 dBm at -26 dBc ACPR, or +41 dBm at -30 dBc ACPR). It runs on a 950-1,700 MHz IF input against a 12.8 GHz LO, draws roughly 110W typical at rated output from a +36 to +54 VDC supply, and includes a strong receive-band rejection filter (-156 dBm/Hz max. across 10.95-12.75 GHz). Housed in a small, lightweight (1.8 kg) IP67 weatherproof enclosure, it is rated for operation up to +75 ℃ and supports multiple monitor-and-control options, with this NMT variant offering Ethernet (HTTP/SNMP) and parallel I/O; RS-485 and RS-232 (optional) variants are also available in the series. It includes an LED status indicator and is RoHS compliant.
| Parameter | Specification |
|---|---|
| RF Output Interface | Waveguide, WR75 (with Groove) |
| IF Input Interface | Coax. Connector, N-type Female (50 Ω) / Coax. Connector, F-type Female (75 Ω) |
| RF Frequency | 13.75 to 14.5 GHz |
| IF Frequency | 950 to 1,700 MHz |
| LO Frequency | 12.8 GHz |
| P1dB Output Power | +42 dBm min. over temperature @ Rated Output Power; Linear Output Power-1: +42 dBm typ. at -26 dBc ACPR; Linear Output Power-2: +41 dBm typ. at -30 dBc ACPR |
| ACPR | -24 dBc max. @ +42 dBm Output Power |
| Linear Gain | 62 dB @ Rated Output Power |
| Input Power Voltage Requirement | +48 VDC (+36 to +54 VDC) |
| Current Consumption | 110 W typ., 115 W max. @ Rated Output Power / 85 W typ. @ No IF signal / 12 W max. @ 10 MHz reference off (Mute on) |
| Operating Temperature Range | Operating Guarantee Range: -40 to +75 ℃ / Performance Guarantee Temperature Range: -40 to +60 ℃ |
| Waterproof / Dustproof (IP-code) | IP67 |
| Weight | 1.8 kg |
| Dimensions | (L) 161 x (W) 83.8 x (H) 86.4 mm (w/o Interfaces & Screws) |
| M&C | RS-485 / RS-232 (Option); Ethernet (HTTP / SNMP); Parallel I/O |
