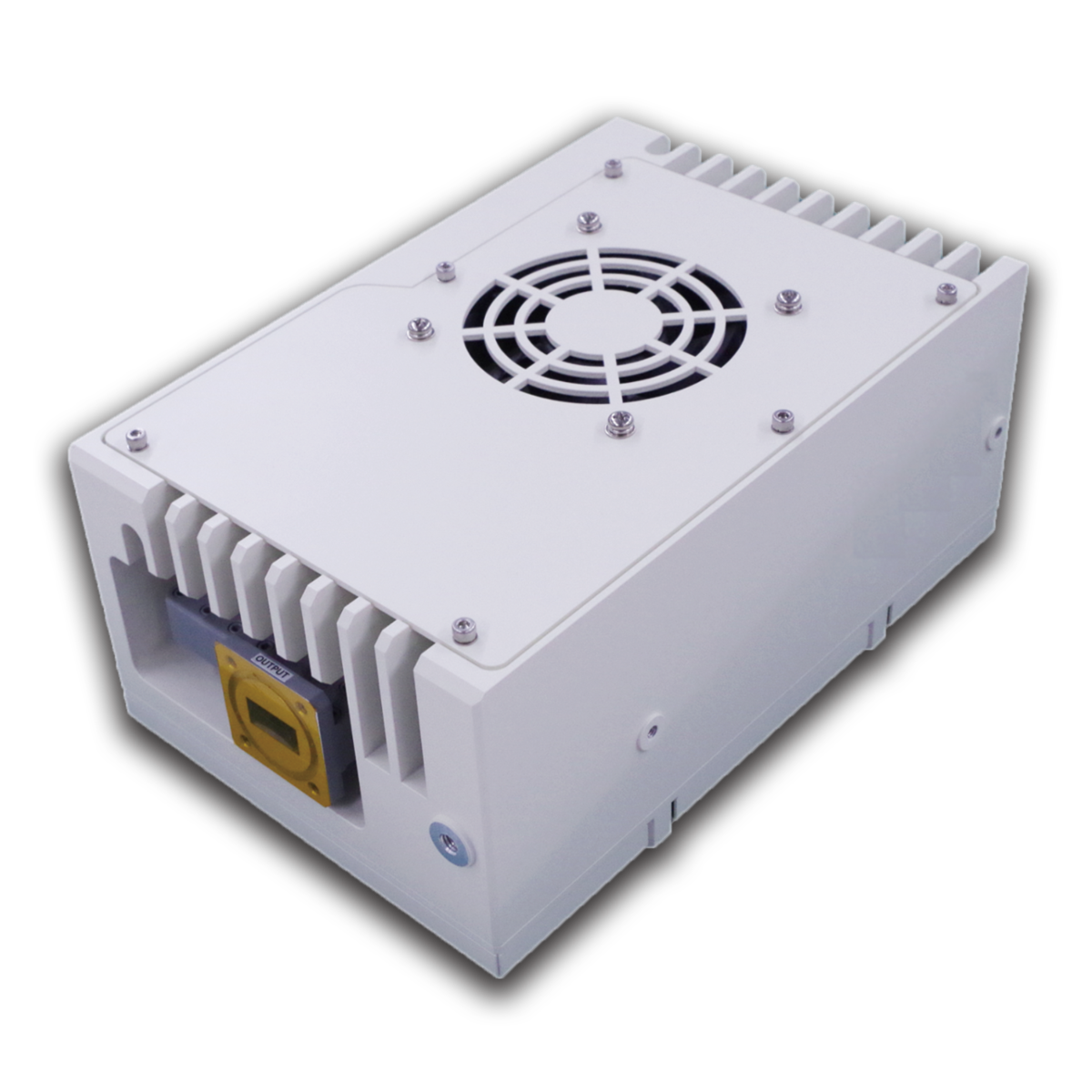

NJT8371U Series – Universal Ku-band 40W GaN BUC
A weatherized 40W GaN block up-converter covering the full 13.75-14.5 GHz universal Ku-band with FSK monitor-and-control and MS-connector power feed.
The NJT8371U is a Ku-band block up-converter built around a GaN power amplifier, designed for the universal 13.75 to 14.5 GHz band and capable of delivering up to 40W (+46 dBm saturated output). It accepts a 950-1,700 MHz IF input against a 12.8 GHz LO, and is housed in a weatherproof, forced-air-cooled enclosure rated IP67 for outdoor use. Key characteristics include an ACPR of -30 dBc typical at +44 dBm output, DC power input of +36 to +60 VDC (with an AC power option), and FSK-based monitor-and-control on this NMK variant (an RS-232C M&C option also exists elsewhere in the series). The unit weighs 4.2 kg, includes an LED status indicator, and is RoHS compliant.
| Parameter | Specification |
|---|---|
| RF Output Interface | Waveguide, WR75 (with Groove) |
| IF Input Interface | Coax. Connector, N-type Female (50 Ω) / Coax. Connector, F-type Female (75 Ω) |
| RF Frequency | 13.75 to 14.5 GHz |
| IF Frequency | 950 to 1,700 MHz |
| LO Frequency | 12.8 GHz |
| Saturation Output Power | +44 dBm min. @ +25 ℃ (Psat) |
| ACPR | -30 dBc typ., 26 dBc max. @ Pout = +44 dBm |
| Small Signal Gain | 72 dB nom., 66 dB min. |
| Input Power Voltage Requirement | +48 VDC (+36 to +60 VDC) [DC Power Models] / 90 to 264 VAC [AC Power Models] |
| Power Consumption | 220 W typ. @ Pout = +42 dBm / 260 W typ., 290 W max. @ Psat |
| Operating Temperature Range | -40 to +60 ℃ |
| Waterproof / Dustproof (IP-code) | IP67 |
| Weight | 4.2 kg |
| Dimensions | (L) 230 x (W) 150 x (H) 100 mm (w/o Interfaces & Screws) |
